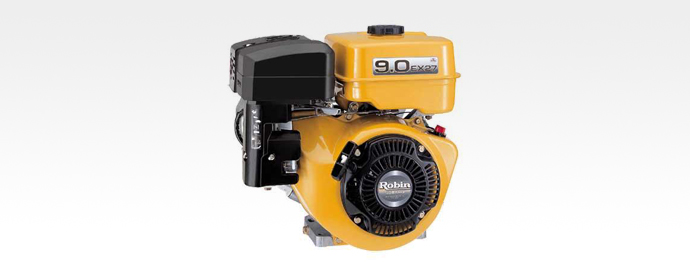

ROBIN GASOLINE (CESB)

Product Code: EX27 (9HP)

Availability: Pre Order

SPECIFICATION

Model	EX27-Premium
Type	Air-cooled, 4-cycle, slant single cylinder, OHC, horizontal PTO shaft
Bore x Stroke mm(in.)	75 x 60 (2.95 x 2.36)
Piston displacement ml(cu.in.)	265 (16.17)
Continuous output kW(HP)/rpm	4.4 (6.0) / 3000 5.1 (7.0) / 3600
Maximum output kW(HP)/rpm	6.6 (9.0) /4000
Maximum torque N・m[kgf・m](lbf・ft)/rpm	18.6 [1.9] (13.74) / 2500
Directon of rotation	Counter clockwise as viewed from PTO shaft side
Fuel	Automobile (unleaded) gasoline
Fuel Tank capacity liter(US gal.)	5.6 (1.48)
Lubricant	Engine oil SAE 10W -30, 20W, 30W
Lubrication	Mechanical splashing type
Lubricationg oil capacity liter(US gal.)	1.00 (0.260)
Carburetor	Float type
lgnition system	Transistorised
Spark plug	NGK BR6HS
Governor	Centrifugal flyweight type
Dry weight kg(lb)	21 (46.31)
Dimension length x width x height mm(in.)	351 x 420 x 410 (13.82 x 16.54 x 16.14)
