ROBIN GASOLINE

ROBIN GASOLINE
ROBIN GASOLINE

ROBIN GASOLINE

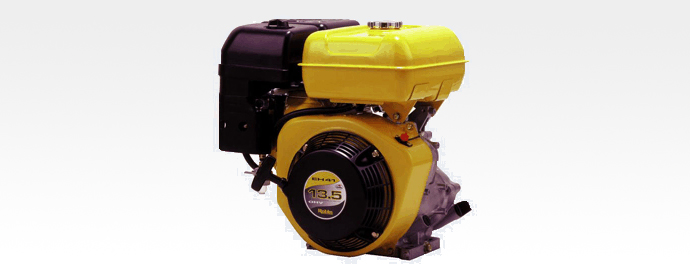

Product Code: EH41 (13.5HP)
Availability: Pre Order
Loading ...
Share:

SPECIFICATIONS

Model EH41D EH41B
Type Single Cylinder Horizontal P.T.O. shaft,Air-cooled Overhead Valve Gasoline Engine
Bore x Stroke (mm) 89 x 65
Piston displacement (cm³) 404
Maximum output
[HP(kw)/rpm]
13.5(9.9)/3600 13.5(9.9)/1800
Continuous output
[HP(kw)/rpm]
9.5(7.0)/3600 8.5(6.3)/1500
Maximum torque
[kgm(Nm)/rpm]
2.90(28.4)/2500 5.80(56.9)/1250
P.T.O Shaft Rotation Counter-Clockwise Facing P.T.O.Shaft
Type of Reduction - 1/2Camshaft reduction
Fuel Automobile Gasoline
Fuel Tank capacity (L) 7.0
Lubricating Oil Capacity (L) 1.2
Ignition System Pointless Electronic Ignition
Charging System (V-A) -
Starting System Recoil Starter(Electric Starter as Option)
Dry Weight (kg) 31 32
Dimension L x W x H (mm) 389 x 431 x 443
