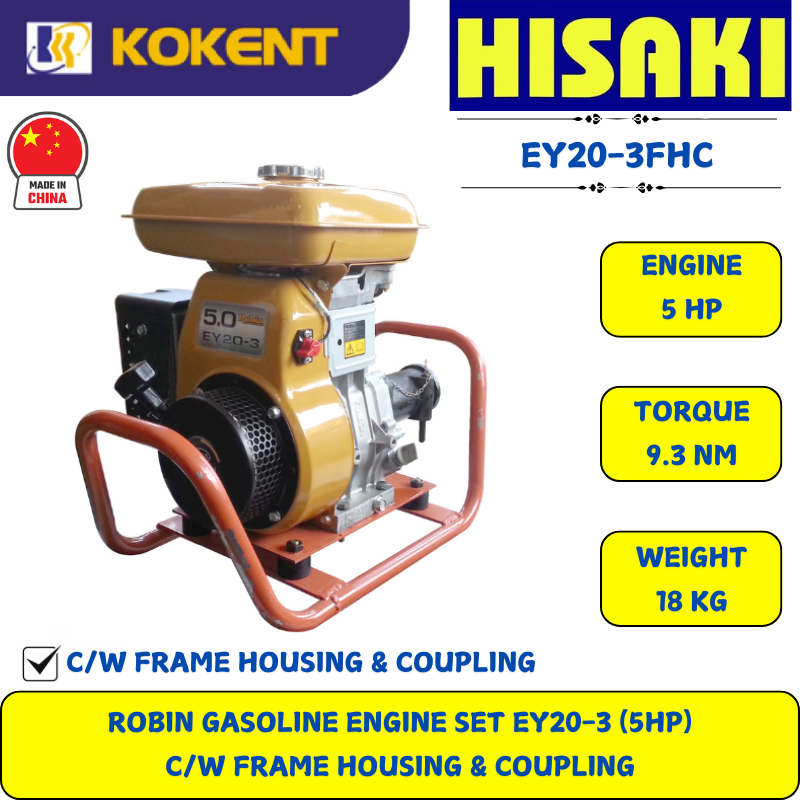

ROBIN GASOLINE ENGINE SET EY20-3 (5HP) C/W FRAME HOUSING & COUPLING EY20-3FHC

1. ROBIN 5.0HP EY20-3FHC Engine

Specifications

• Model : EY20-3FHC
• Type : Air-cooled, 4-cycle single cylinder, side valve, gasoline engine
• Horse power : 5.0 HP
• Displacement : 183cc
• Continuous Output : 2.6kW/3600 rpm , 3.5HP/3600rpm
• Maximum Output : 3.7kW/4000rpm , 5.0HP/4000rpm
• Direction of rotation : Counterclockwise as view from P.T.O. Shaft side
• Oil capacity : 0.6L
• Fuel : Automotive Gasoline (Unleaded)
• Fuel tank capacity : 3.8L
• Starting system : Recoil starter
• Dry weight : 15kg
• Dimensions : 318 x 332 x 392 mm
