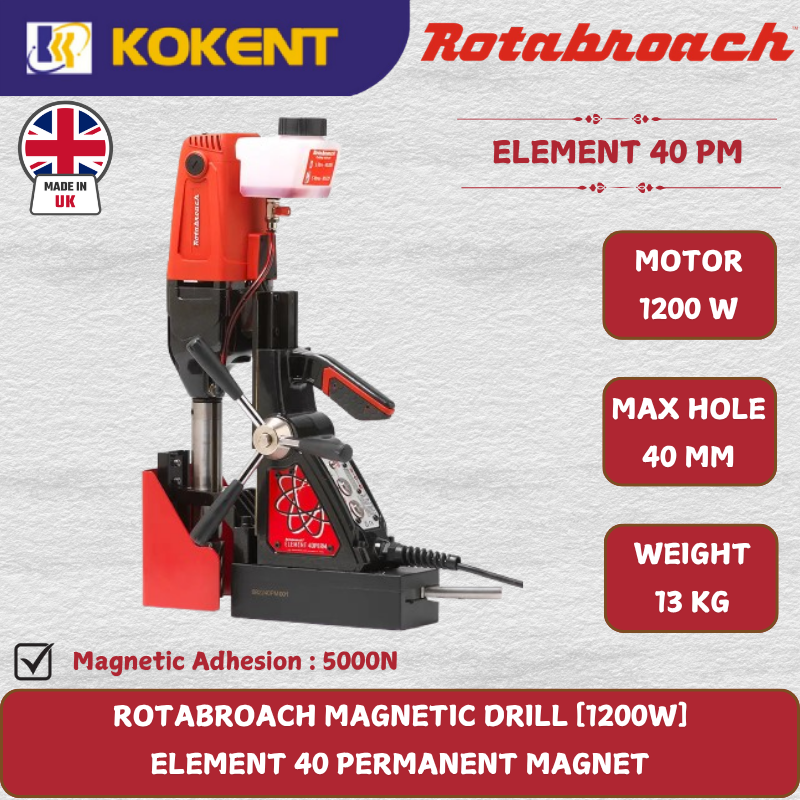

ROTABROACH MAGNETIC DRILL [1200W] ELEMENT 40 PERMANENT MAGNET
Element 40 Permanent Magnet
-
Powerful 1200w motor with a two-speed mechanical gearbox.
-
13kg in total weight.
-
Suitable for drilling up to 40mm diameter by 50mm depth.
-
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
-
Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
-
Internal cabling reduces the risk of damage and downtime for your magdrill.
-
Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
-
Small in size (514mm), this magnetic drill performs in difficult environments.
-
Innovative permanent magnet technology: maintains its hold even during power loss.
-
Dual motor protection, minimising wear and downtime of this magdrill.
SPECIFICATION
| Model Number |
Element 40/1 Permanent Magnet / Element 40/3 Permanent Magnet |
|---|---|
| Motor Specification |
110V 1200W / 230V 1200W |
| No load RPM |
Low Gear: 300 RPM/High Gear: 600 RPM |
| Max Cutting Capacity |
ø40 x 50mm deep |
| Drill Chuck Capacity |
ø13mm |
| Overall Dimension |
Height: 514mm / Width: 185mm with Capstan / Length: 285mm with Guard |
| Machine Weight |
13kg |
| Magnetic Adhesion |
5,000N |
| Magnet Size |
180mm x 90mm |
| Safety Features |
Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
