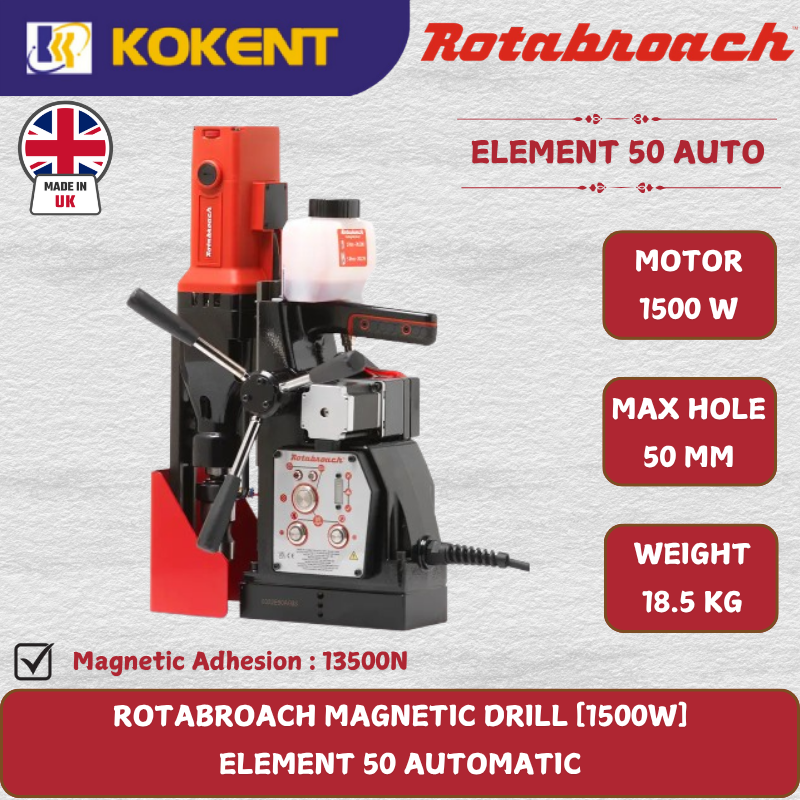

ROTABROACH MAGNETIC DRILL [1500W] ELEMENT 50 AUTOMATIC
ELEMENT 50 AUTOMATIC
Powerful 1500w motor with a two-speed mechanical gearbox.
Fully automatic drilling. The machine drills the hole, retracts and powers off – ready to be moved safely on to the next hole.
Suitable for drilling up to 40mm diameter by 50mm depth.
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
Internal cabling reduces the risk of damage and downtime for your magdrill.
Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
At just 514mm, this magnetic drill can perform in difficult environments.
50mm max cutter diameter
Dual motor protection system to prolong the machine’s life and prevent unwanted wear.
specifications
| Model Number | Element 50 / 1 Auto /Element 50 / 3 Auto |
| Motor Specification | 110V 1500W / 230V 1500W |
| No load RPM | Low Gear:100-265RPM/ High Gear: 200-500 RPM |
| Max Cutting Capacity | ø50 x50mm deep - 20mm with 2MT twist drill |
| Overall Dimension | Height: 586mm / Width:190mm/ Length: 317mm |
| Drill Chuck Capacity | ø13mm |
| Machine Weight | 18.5kg |
| Magnetic Adhesion | 13500N |
| Magnet Size | 200 x 98mm |
| Safety Features | Cutsmart™ Technology / Magnetic Detection / Secondary Motor Protection |
