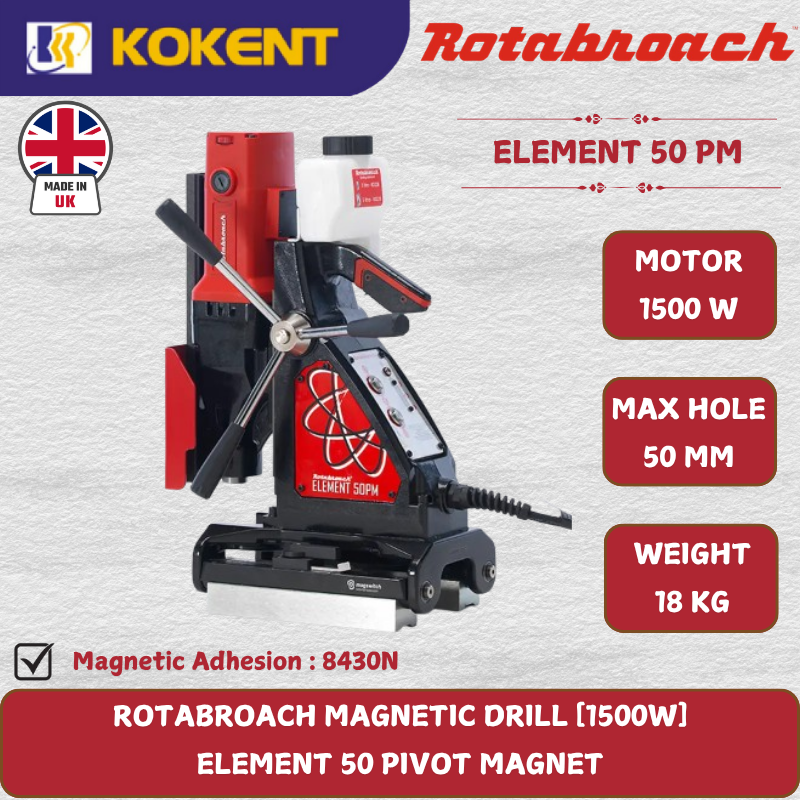

ROTABROACH MAGNETIC DRILL [1500W] ELEMENT 50 PIVOT MAGNET
Element 50 Pivot Magnet
-
Powerful 1500w motor with a two-speed mechanical gearbox.
-
Twist drill, threading and countersinking capabilities.
-
Suitable for drilling up to 50mm diameter by 50mm depth.
-
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
-
Double pivoting magnet base.
-
Internal cabling reduces the risk of damage and downtime for your magdrill.
-
Mounted coolant bottle, steel sliding guard and switchable handle.
-
490mm to 640mm in height.
-
Can be also used for standard flat surface drilling.
-
Dual motor protection, minimising wear and downtime of this magdrill.
SPECIFICATION
| Model Number |
Element 50/1PM / Element 50/3PM |
|---|---|
| Motor Specification |
110V 1500W / 230V 1500W |
| No load RPM |
Low Gear: 100-265RPM / High Gear: 200-500RPM |
| Max Cutting Capacity |
⌀50 x 50mm Deep – 20mm with 2MT twist drill |
| Tapping |
M20 |
| Overall Dimension |
Height: min 490mm – max 640mm / Width: 190mm / Length: 317mm |
| Machine Weight |
110V/18kg / 230V/17.7kg |
| Magnetic Adhesion |
8,430N |
| Magnet Size |
277mm x 190m |
| Safety Features |
Cutsmart™ Technology / Magnetic Detection / Secondary Motor Protection |
