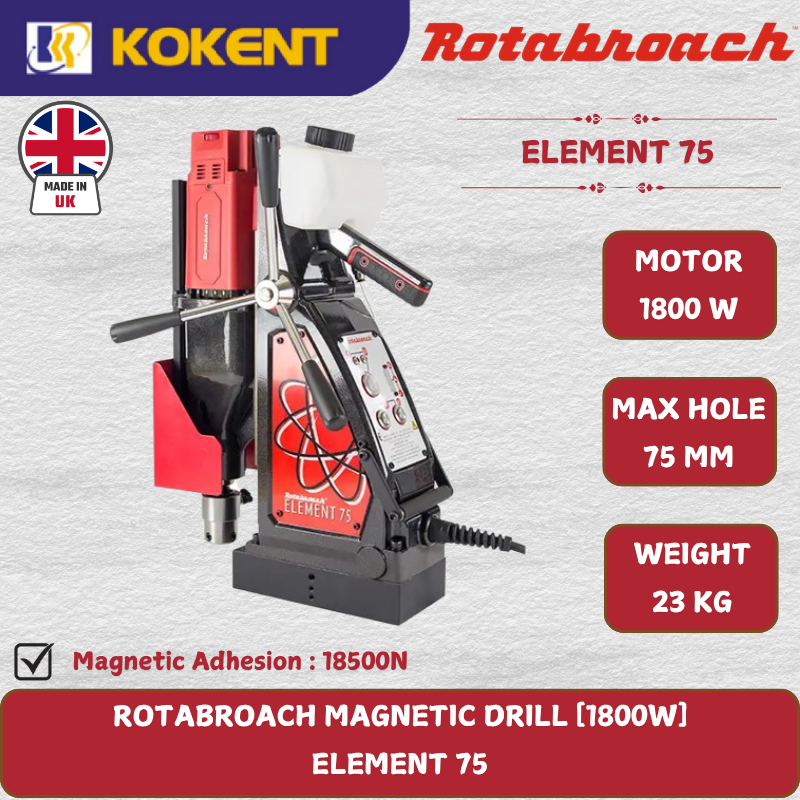

Element 75

Powerful 1800w motor with a two speed mechanical gearbox.
23.5kg: Lighter and more compact than other heavy-duty drills.
Suitable for drilling up to 75mm diameter by 75mm depth.
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
Internal cabling reduces the risk of damage and downtime for your magdrill.
Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
Swivel Base options available.
Twist drill, threading and countersinking capabilities.
Dual motor protection, minimising wear and downtime of this magdrill.

Model Number	Element 75/1 / Element 75/3
Motor Specification	110V 1800W / 230V 1800W
No load RPM	Low Gear: 70 -180 RPM / High Gear: 200-500 RPM
Max Hole Cutting Capacity	ø75 x 75mm Deep – 26mm with MT Drill
Tapping	M24
Overall Dimension	Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight	23.5kg
Magnetic Adhesion	18,500N
Magnet Size	220mm x 114mm
Safety Features	Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
