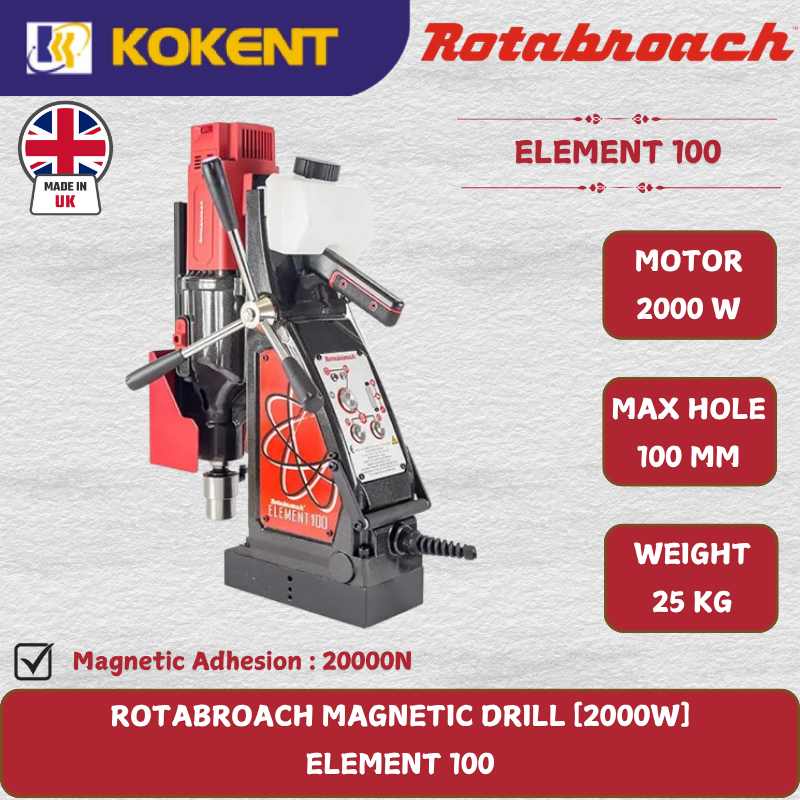

Element 100

Powerful 2000w motor with a four-speed mechanical gearbox.
Rotabroach’s largest machine (733mm), the Element 100 is the ultimate heavy-duty drilling solution.
Suitable for drilling up to 100mm diameter by 100mm depth.
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
Internal cabling reduces the risk of damage and downtime for your magdrill.
Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
Swivel Base options available.
Twist drill, threading and countersinking capabilities.
Dual motor protection, minimising wear and downtime of this magdrill.

Model Number	Element 100/1 / Element 100/3
Motor Specification	110V 2000W / 230V 2000W
No load RPM	Gear 1: 45-129 RPM Gear 2: 70-208 RPM Gear 3: 150-434 RPM Gear 4: 240-700 RPM
Max Hole Cutting Capacity	ø100 x 100mm Deep – 31.75 with MT Drill
Tapping	M30
Overall Dimension	Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight	24.8kg
Magnetic Adhesion	20,000N
Magnet Size	228mm x 114mm
Safety Features	Cutsmart™ Technology / Fixed Guard / Magnetic Detection
