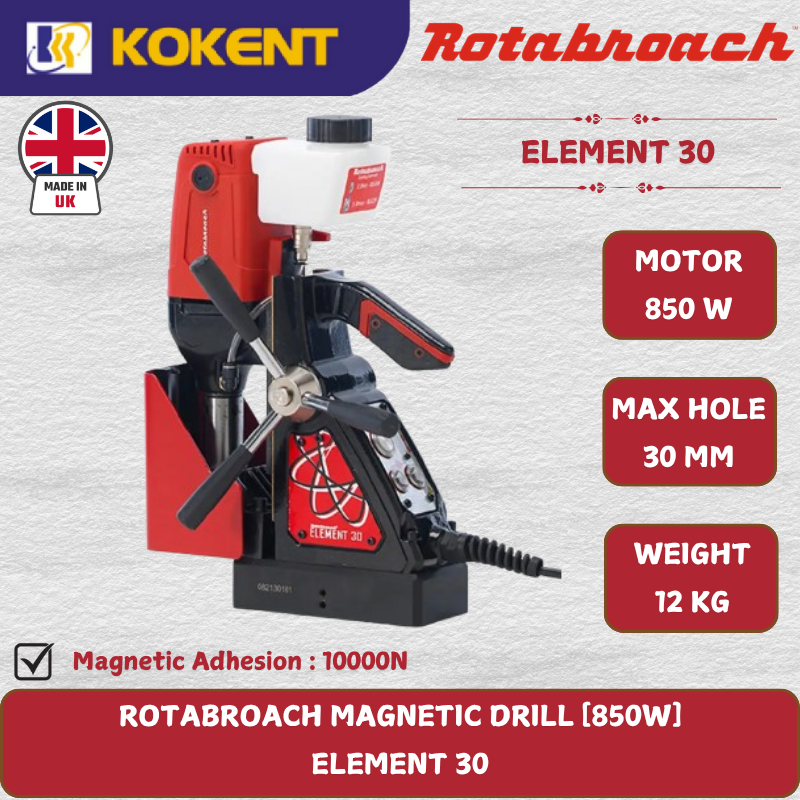

Element 30

With a powerful 850w motor, this drill is a combination of power and portability.
Weighs 10.8kg, making the ‘Element 30’ one of the lightest magnetic based drills in the world.
Suitable for drilling up to 32mm diameter by 35mm depth.
CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
Internal cabling reduces the risk of damage and downtime for your magdrill.
Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
Small in size (410mm), this magnetic drill revels in the harshest of environments.
32mm max cutter diameter.
Dual motor protection system to prolong the machine’s life and prevent unwanted wear.

Model Number	Element 30/1 / Element 30/3
Motor Specification	110V 850W / 230V 850W
No load RPM	600 RPM
Max Cutting Capacity	ø32 x 35mm deep
Drill Chuck Capacity	ø13mm
Overall Dimension	Height: 410mm / Width: 165mm with Capstan / Length: 270mm with Guard
Machine Weight	10.8kg
Magnetic Adhesion	10,000N
Magnet Size	165mm x 80mm
Safety Features	Cutsmart™ Technology / Fixed Guard / Magnetic Detection
