Product Code: ELEMENT 100
Availability: In Stock
Loading ...
Share:

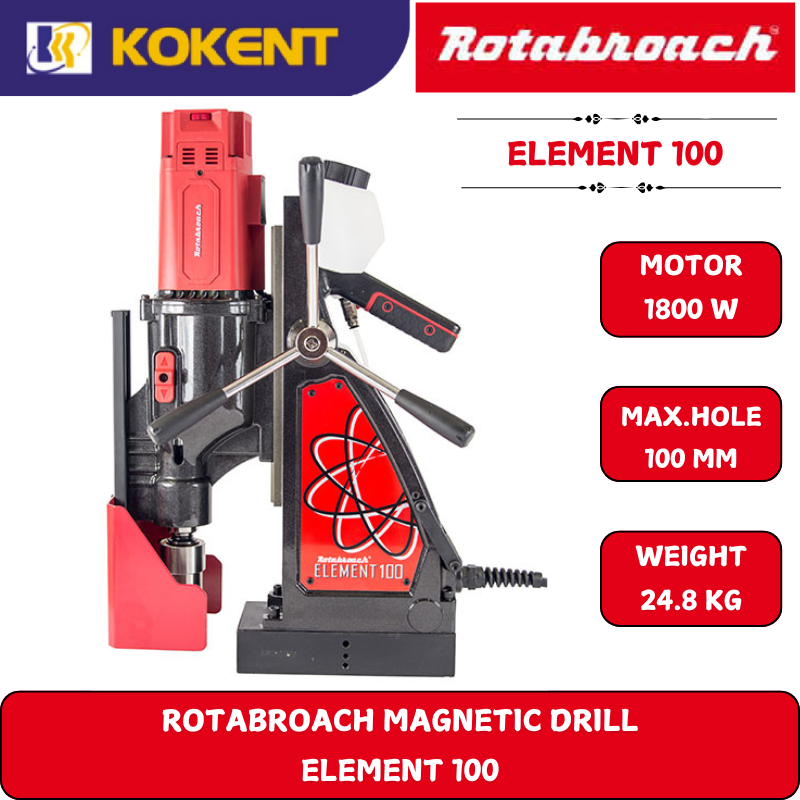

Rotabroach Magnetic Drill Element-100

  • The Rotabroach’s largest machine comes with large diameter drilling and cutting depths and is suitable for drilling up to 100mm diameter by 100mm depth.
  • The ‘Element 100’ offers forward and reverse functionality for tapping and can be supplied as a swivel base or a non-swivel base.
  • The Element range uses a unique dual motor protection system prolonging the machine’s life and preventing unwanted wear.
  • Made in Sheffield, UK.

Rotabroach Magnetic Drill Element-100 Specifications

Model Number Element 100/3
Motor Specification 230V 1800W
No Load RPM Gear 1: 45-129 RPM

Gear 2: 70-208 RPM

Gear 3: 150-434 RPM

Gear 4: 240-700 RPM

Max Hole Cutting Capacity 100 x 100mm Deep – 31.75 with MT Drill
Overall Dimension (mm) Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight 24.8kg
Magnetic Adhesion 20,000N
