Product Code: ELEMENT 75
Availability: In Stock
Loading ...
Share:

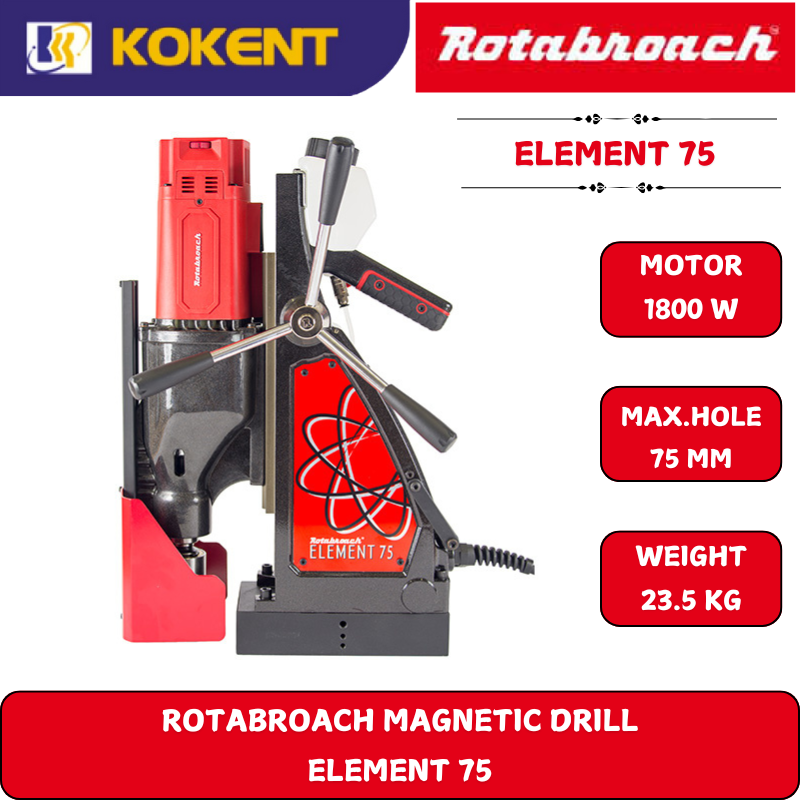

Rotabroach Magnetic Drill Element-75

  • For heavy-duty operations the ‘Element 75’ is a must for drilling larger holes.
  • Compact, durable, and more portable than other larger machines.
  • Suitable for drilling up to 75mm diameter by 75mm depth.
  • The ‘Element 75’ offers forward and reverse functionality.
  • The ‘Element 75’ can be supplied as a swivel base or a non-swivel option.
  • The Element range uses a unique dual motor protection system prolonging the machine’s life and preventing unwanted wear.
  • Made in Sheffield, UK.

Rotabroach Magnetic Drill Element-75 Specifications

Model Number Element 75/3
Motor Specification 230V 1800W
No Load RPM Low Gear: 70 -180 RPM

High Gear: 200-500 RPM

Max Hole Cutting Capacity 75 x 75mm Deep – 26mm with MT Drill
Overall Dimension (mm) Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard
Machine Weight 23.5kg
Magnetic Adhesion 18,500N
