ROTABROACH MAGNETIC DRILL ELEMENT100
Product Code: ELEMENT100
Availability: In Stock

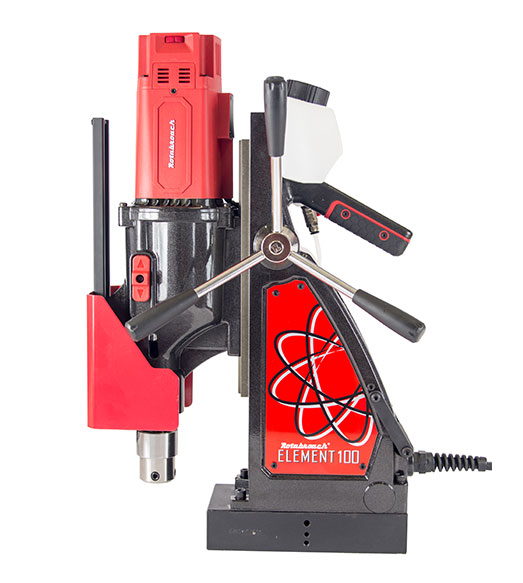

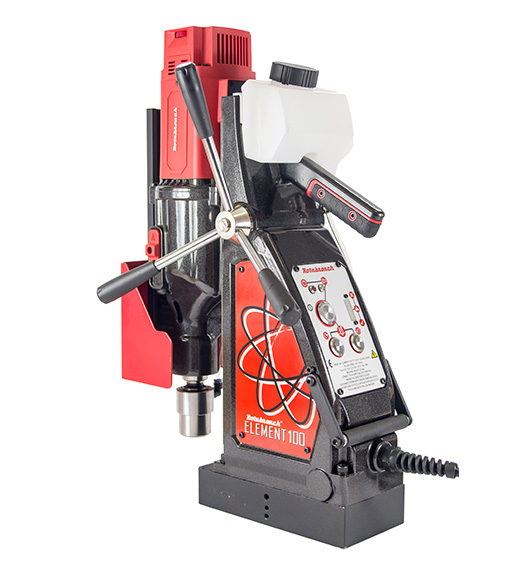

Element 100
- Rotabroach’s largest machine with large diameter drilling and cutting depths.
- Suitable for drilling up to 100mm diameter by 100mm depth.
- The ‘Element 100’ offers forward and reverse functionality for tapping.
- The ‘Element 100’ can be supplied as a swivel base or a non-swivel base.
- The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.
| Model Number | Element 100/1 / Element 100/3 |
| Motor Specification | 110V 2000W / 230V 2000W |
| No Load RPM | Gear 1: 45-129 RPM
Gear 2: 70-208 RPM Gear 3: 150-434 RPM Gear 4: 240-700 RPM |
| Max Hole Cutting Capacity | ø100 x 100mm Deep – 31.75 with MT Drill |
| Overall Dimensions | Height: 560mm / Width: 230mm with Capstan / Length: 460mm with Guard |
| Machine Weight | 24.8kg |
| Magnetic Adhesion | 20,000N |
| Magnet Size | 228mm x 114mm |
| Safety Features | Cutsmart™ Technology / Fixed Guard / Magnetic Detection |
