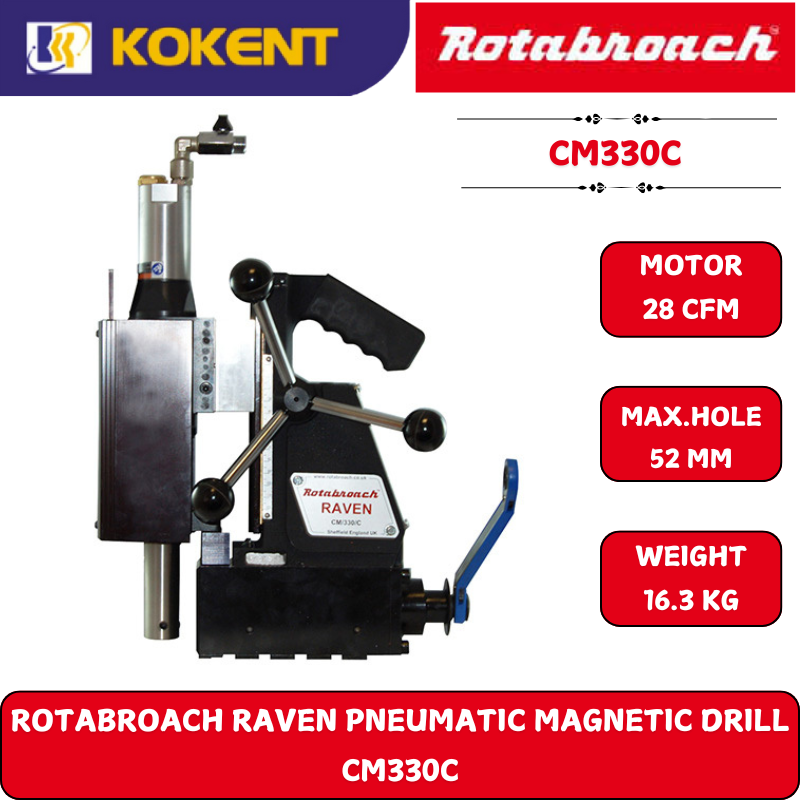

ROTABROACH RAVEN PNEUMATIC MAGNETIC DRILL CM330C
Product Code: CM330C
Availability: In Stock
Rotabroach Raven CM330C Pneumatic Drilling Machine CM330C
- Designed for use on pneumatic supplies in non-corrosive atmospheres (mostly for oil & gas industry).
- Suitable for use in any environment where an electricity supply is not available such as petrochemical plants, offshore oil platforms, and other hazardous environments.
- Atlas Copco Pneumatic motor, combining safety and reliability.
- Lightweight and highly portable.
- Suitable for drilling up to 52mm diameter by 50mm depth.
- Comes with a high-quality metal casing or storage box.
- Made in Sheffield, UK
Rotabroach Raven CM330C Pneumatic Drilling Machine Specifications
| Model Number | CM/330/C |
| Motor Specification | 13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max |
| No Load RPM | 270 RPM |
| Max Hole Cutting Capacity | ø52 x 50mm deep |
| Drill Chuck Capacity | ø16mm |
| Overall Dimensions | Height: 525mm / Width: 165mm / Length: 315mm |
| Machine Weight | 16.3kg |
| Magnetic Adhesion | 7,000N |
| Magnet Size | 175mm x 75mm |
