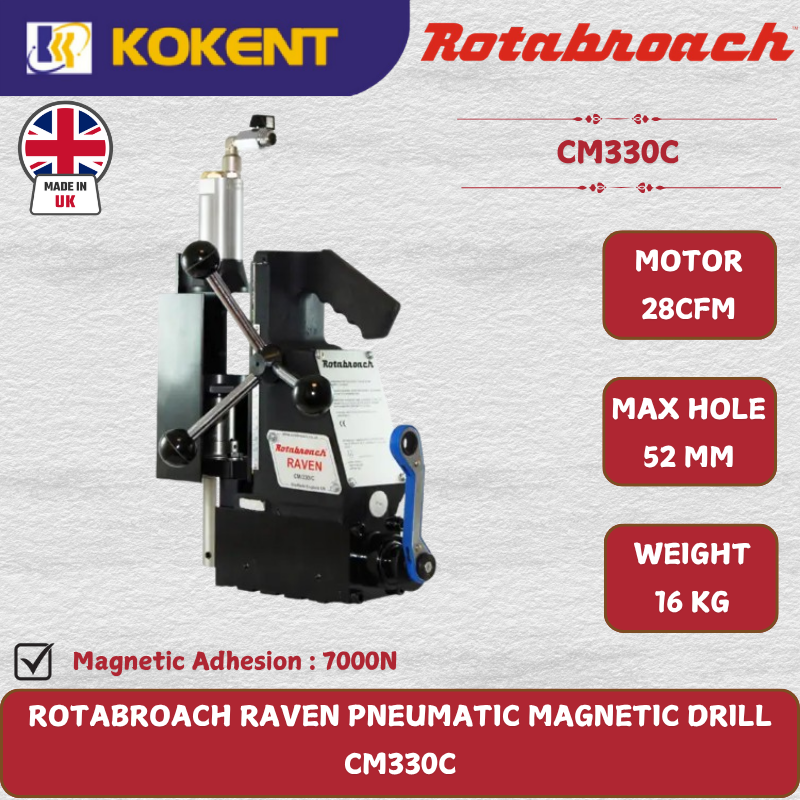

ROTABROACH RAVEN PNEUMATIC MAGNETIC DRILL CM330C
Product Code: CM330C
Availability: In Stock
Raven
-
Designed for use on pneumatic supplies in non-corrosive atmospheres.
-
Lightweight and highly portable.
-
Suitable for drilling up to 52mm diameter by 50mm depth.
SPECIFICATION
| Model Number |
CM/330/C |
|---|---|
| Motor Specification |
13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max |
| No load RPM |
270 RPM |
| Max Hole Cutting Capacity |
ø52 x 50mm deep |
| Drill Chuck Capacity |
ø16mm |
| Overall Dimension |
Height: 525mm / Width: 165mm / Length: 315mm |
| Machine Weight |
16.3kg |
| Magnetic Adhesion |
7,000N |
| Magnet Size |
175mm x 75mm |
| Safety Features |
Fixed Guard |
