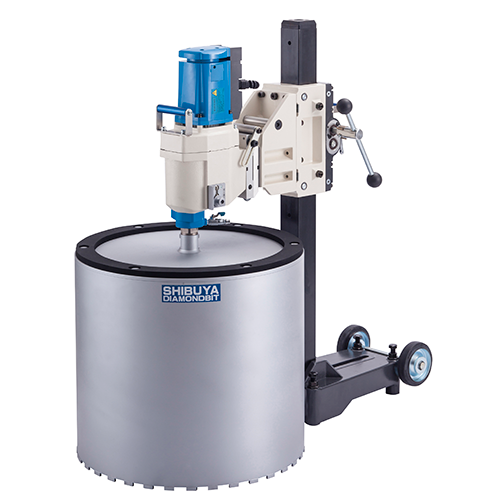

SHIBUYA DYMODRILL (24")
Product Code: TS603FS
Availability: In Stock
RM0.00
TS603FS
- Ideal machine for large diameter core drilling jobs.
- Multi-position water swivel inlet for convenience.
- Right and left hand feed handle position.
- Built-in on/off switch with motor overload protection.
- Portable Residual Current Device automatically shuts off electricity in the event of electric leakage.
- Normal Stand Column:1100mm(43″) with 625mm(24″)stroke.73x73mm(2-7/8″x2-7/8″)square column
- Quick Release Spacer as standard accessory for easy mounting/dismounting of the motor.
| HEIGHT | 1106mm |
|---|---|
| BASE SIZE | 230x400mm |
| STAND TYPE | Fixed Stand |
| RATED INPUT | 2800w |
| VOLTAGE | 220-240V |
| GEAR | 3 Speed |
| TRAVEL LENGTH | 625mm |
| NO.LOAD SPEED | 150rpm/300rpm/600rpm |
| PREFER CORE BUT DIA | 100-600mm |
| WEIGHT | 62kg |
