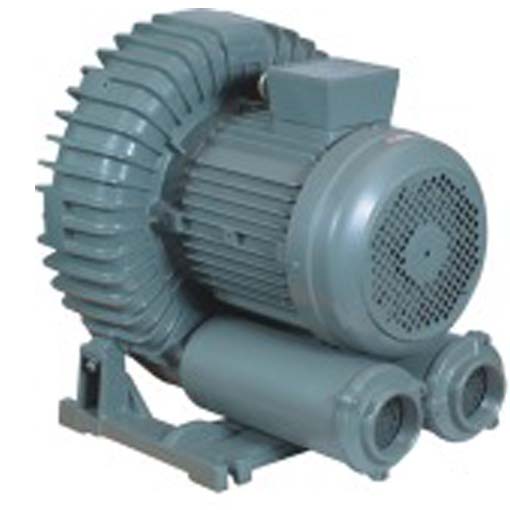

Showfou Voltex Ring Blower, 1HP, 1-1/2", 17kg, BS-112

Showfou Voltex Ring Blower, 1HP, 1-1/2
Showfou Voltex Ring Blower, 1HP, 1-1/2

Showfou Voltex Ring Blower, 1HP, 1-1/2", 17kg, BS-112

Product Code: BS-112
Availability: Pre Order
Loading ...
Share:

Model: BS-112
An ideal voltex ring blower.

Price inclusives 6%GST.

General

  • SHOWFOU RING BLOWERS, known also as REGENERATIVE BLOWER, are directly driven by TEFC IP54 Grade F insulation electric motors of Showfou's own make.
  • All blower and motor parts are cast aluminum and therefore highly resistant to corrosion.
  • The ribs on the blower housing provide for good heat dissipation, further assisted by the air flow of the motor fan.
  • SHOWFOU RING BLOWERS are designed for the conveying of air as well as for generating pressure or vacuum.
  • The use of the units for aggressive and toxic media, air of high humidity and medium temperature exceeding 40°C is subject to a detailed clarification.
  • The conveying explosive gases are prohibited.
  • If the medium to be conveyed contains solid particles or other pollutions, they are to be removed before entering the blower by installing a filter, or similar device on the suction side.
  • An increase of the volumetric flow or the pressure may be achieved by connecting two blowers either in series or in parallel.
  • If connected in series, the pressures are added whereas the volumetric flow remains the same.
  • If connected in parallel, the volumetric flow rates are added whereas the pressure remains the same.

Features

  • Aluminum blower housing, impeller and cover .
  • Continuous duty, Non-pulsating operation.
  • Low Noise and Vibration, Inlet and outlet have internal silencer.
  • Can be mounted in any plane .
  • Oil Free design eliminates contamination of downstream components .
  • TEFC enclosure eliminates atmospheric contamination of motor windings and bearings.

Specifications

Power   750W
Phase Single Phase
Volt 220 V
Bore Size 1-1/2" (40mm)
Noise 68 dB
Dimension (L x W x H)     290mm x 290mm x 310mm
Weight 17.0 kg
