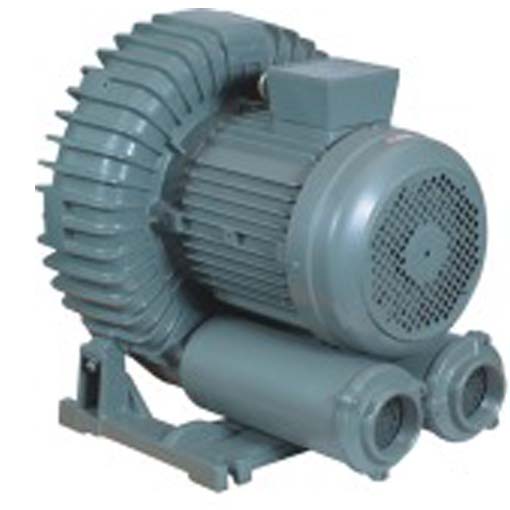

Showfou Voltex Ring Blower, 2HP, 2", 27kg, BS-212

Model: BS-212
An ideal voltex ring blower.

Price inclusives 6% GST.

General

• SHOWFOU RING BLOWERS, known also as REGENERATIVE BLOWER, are directly driven by TEFC IP54 Grade F insulation electric motors of Showfou's own make.
• All blower and motor parts are cast aluminum and therefore highly resistant to corrosion.
• The ribs on the blower housing provide for good heat dissipation, further assisted by the air flow of the motor fan.
• SHOWFOU RING BLOWERS are designed for the conveying of air as well as for generating pressure or vacuum.
• The use of the units for aggressive and toxic media, air of high humidity and medium temperature exceeding 40°C is subject to a detailed clarification.
• The conveying explosive gases are prohibited.
• If the medium to be conveyed contains solid particles or other pollutions, they are to be removed before entering the blower by installing a filter, or similar device on the suction side.
• An increase of the volumetric flow or the pressure may be achieved by connecting two blowers either in series or in parallel.
• If connected in series, the pressures are added whereas the volumetric flow remains the same.
• If connected in parallel, the volumetric flow rates are added whereas the pressure remains the same.

Features

• Aluminum blower housing, impeller and cover .
• Continuous duty, Non-pulsating operation.
• Low Noise and Vibration, Inlet and outlet have internal silencer.
• Can be mounted in any plane .
• Oil Free design eliminates contamination of downstream components .
• TEFC enclosure eliminates atmospheric contamination of motor windings and bearings.
