Product Code: 3CRm80N
Availability: In Stock
Loading ...
Share:

Model: 3CRm80N (Single Phase)

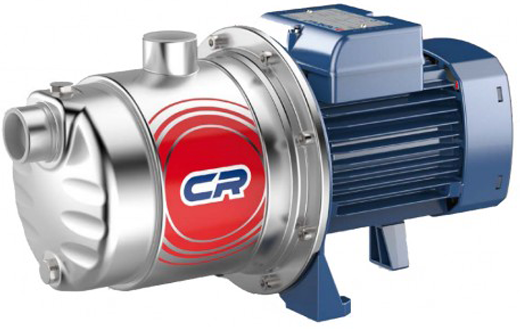

Silent stainless steel multistage centrifugal pump.

Price inclusives 6%GST.

Descriptions

  • As a result of their quietness, these pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: domestic, civil

Type: surface

Range: multi-impeller

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +40 °C
  • Ambient temperature up to +40 °C
  • Max. working pressure 7 bar
  • Continuous service S1

Specifications

Size Discharge   1" x 1"
Power 450 W / Single phase
Flow Rate 5 ~ 80 L/min
Head 38 ~ 5 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +40°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   357mm x 182mm x 182mm
Weight 9 kg
