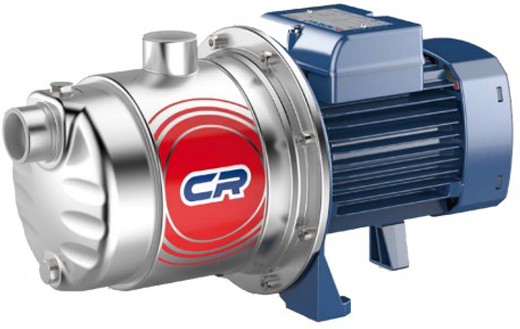

SS Multi-Stage Centrifugal Pump 0.75kW 5~130L/min 50~5m 4CRm100N
Product Code: 4CRm100N
Availability: In Stock
Model: 4CRm100N (Single Phase)
Silent stainless steel multistage centrifugal pump.
Price inclusives 6%GST.
Descriptions
- As a result of their quietness, these pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Pumped liquid: clean water
Use: domestic, civil
Type: surface
Range: multi-impeller
Application limits
- Manometric suction lift up to 7 m
- Liquid temperature between -10 °C and +40 °C
- Ambient temperature up to +40 °C
- Max. working pressure 7 bar
- Continuous service S1
Specifications
| Size Discharge | 1" x 1" |
| Power | 750 W / Single phase |
| Flow Rate | 5 ~ 130 L/min |
| Head | 50 ~ 5 meters |
| Manometric Suction Lift | Max. 7 meters |
| Liquid Temperature | Max. +40°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 386mm x 182mm x 202mm |
| Weight | 10 kg |
