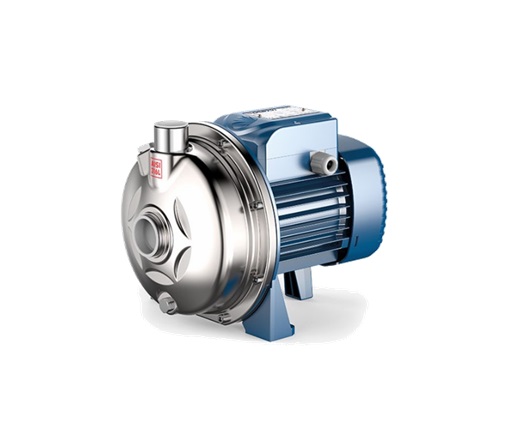

PEDROLLO Stainless Steel Centrifugal (II)
PREFER CONTACT KENT
PERFORMANCE RANGE
- Maximum flow rate 270 l/min (16.2 m3/h)
- Maximum head 45 m
INSTALLATION AND USE
Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made. Because of its design featuires these centrifugal pumps are recommended for use in domestic, agricultural and industrial applications. All the components in contact with the pumped liquid are in stainless steel AISI 304 or 316L thus guaranteeing complete hygene and maximum resistance against corrosion. The pump should be installed in an enclosed environment or sheltered from inclement weather.
APPLICATION LIMITS
- Manometric suction lift up to 7 m
- Liquid temperature between -10 °C and +90 °C
- Ambient temperature between +40 °C
- Max. working pressure :
- 6 bar for CP 100-130-132-150-150 ST4
- 6 bar for CP 100-130-132-150-158 ST6
- 8 bar for CP 170-170M ST4
- 8 bar for CP 180-190-200 ST4
- 8 bar for CP 180-190-200 ST6
- Continuous service S1
OPTIONS AVAILABLE ON REQUEST
- Special mechanical seal
- Other voltages or 60 Hz frequency
- IP X5 class protection for CP 170-170M-180-190-200 ST
|
MODEL single-phase |
MODEL three-phase |
POWER kW |
POWER HP |
0 0 |
0.6 10 |
1.2 20 |
2.4 40 |
3.6 60 |
5.4 90 |
6.0 100 |
7.2 120 |
8.4 140 |
9.0 150 |
9.6 160 |
12 200 |
13.8 230 |
15 250 |
16.2 270 |
|
CPm 100-ST4 CPm 100-ST6 |
CP 100-ST4 CP 100-ST6 |
0.25 | 0.33 | 16 | 15.5 | 15 | 13.5 | 11.2 | 6.5 | |||||||||
|
CPm 130-ST4 CPm 130-ST6 |
CP 130-ST4 CP 130-ST6 |
0.37 | 0.50 | 22.5 | 21.5 | 20.8 | 18.8 | 16 | 10.8 | 9 | ||||||||
|
CPm 132-ST4 CPm 132-ST6 |
CP 132-ST4 CP 132-ST6 |
0.55 | 0.75 | 24 | - | 23 | 21.5 | 19.8 | 16.5 | 15 | 12 | |||||||
|
CPm 150-ST4 CPm 150-ST6 |
CP 150-ST4 CP 150-ST6 |
0.75 | 1 | 32 | - | 31 | 29.8 | 28 | 24.8 | 23.2 | 20 | 16 | 14 | |||||
|
CPm 158-ST4 CPm 158-ST6 |
CP 158-ST4 CP 158-ST6 |
0.75 | 1 | 36.5 | 34.5 | 33 | 31 | 26.2 | 23 | 19 | ||||||||
|
CPm 170-ST4 CPm 170-ST6 |
CP 170-ST4 CP 170-ST6 |
1.1 | 1.5 | 41 | 40 | 39.2 | 37.8 | 36 | 32 | 30 | 25.8 | 20 | ||||||
|
CPm 170M-ST4 CPm 170M-ST6 |
CP 170M-ST4 CP 170M-ST6 |
1.1 | 1.5 | 36.5 | - | 35.5 | 34.3 | 33 | 30 | 29 | 31.2 | 23 | 21 | 19 | ||||
|
CPm 180-ST4 CPm 180-ST6 |
CP 180-ST4 CP 180-ST6 |
1.1 | 1.5 | 31.5 | - | - | 30 | 29.2 | 27.5 | 26.8 | 25.2 | 23.5 | 22.5 | 21.5 | 17 | 13 | ||
|
CPm 190-ST4 CPm 190-ST6 |
CP 190-ST4 CP 190-ST6 |
1.5 | 2 | 37 | - | - | 35 | 34 | 32.5 | 32 | 30.5 | 28.5 | 27.5 | 27 | 22.5 | 18.5 | 15.5 | |
|
CPm 200-ST4 CPm 200-ST6 |
CP 200-ST4 CP 200-ST6 |
2.2 | 3 | 45 | - | - | 43 | 42 | 40.5 | 39.5 | 38 | 36.5 | 35.5 | 34.2 | 29.5 | 25.5 | 22 | 18 |
