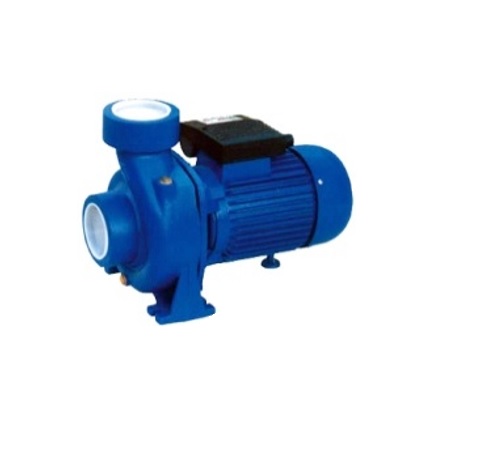

Stream Centrifugal Pump (II)
Product Code: CS / CST / SHF
Availability: Pre Order
Limits of Use:
- Max. Ambient temperature up to 40°C.
- Max. Fluid temperature up to 80°C.
- Max. Pressure up to 10 bar.
Construction Features:
- Pump Body : Cast Iron
- Motor Housing : Aluminium
- Shaft : 45# Steel / Stainless Steel
- Impeller : Brass Noryl
- Motor : Closed, Externally ventilated
- Insulation Class : B/F Protection
- Class : IP44 / IP54
- Duty : Continuously rated
- Mechanical Seal : Ceramic metalized Carbon
| Model | Size | Power |
Performances Q (L/min) |
Performances H(m) |
| CS150/2 | 2" x 2" | 1.5hp / 1Φ | 100-580 | 13-9 |
| CS200/2 | 2" x 2" | 2hp / 1Φ | 100-600 | 20-11 |
| CS300/3 | 3" x 3" | 3hp / 1Φ | 200-800 | 15-7 |
| CST150/2 | 2" x 2" | 1.5hp / 3Φ | 100-580 | 13-9 |
| CST200/2 | 2" x 2" | 2hp / 3Φ | 100-600 | 20-11 |
| CST200/3 | 1" x 1" | 2hp / 3Φ | 20-110 | 15-7 |
| CST300/3 | 3" x 3" | 3hp / 3Φ | 200-800 | 15-7 |
| SHF6B | 3" x 3" | 2hp / 3Φ | 200-750 | 14-5 |
