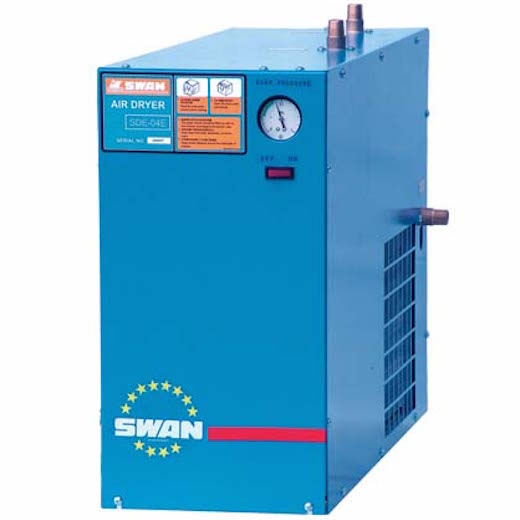

Model: SDE-22A
SWAN refrigerated air dryer suitable for air compressor from 20HP to 30HP.
Features
Highly grade finned coil type Heat Exchanger to maximize heat transfer by the ample heat exchanging surface.
Microprocessor control system ensures the stable and quiet running; avoids starting/stopping vibration and breakdown.
Heavy duty reliable design which totally meet the working requirements under the warm and high humidity ambient conditions. Ample heat exchanger and efficient air circuit design make the pressure drop to the least.
Using environmental friendly refrigent R-407c or R-134a for all models. Dependable control system, easy operation, solid construction, least maintenance, and highest reliability all in one.
Specifications
Applicable Ranges
for Air Compressor
20HP to 30HP
Flow Rate
4400L/min
Dew Point
2~10°C
Inlet Temperature
Max. 50°C
Ambient Temperature
2~43°C
Working Pressure
2~10 Bar
Inlet & Outlet
1"
Voltage
240V
Type of Refrigerant
R-407C
Dimensions (L x W x H)
254mm x 816mm x 626mm
Weight
42kg
