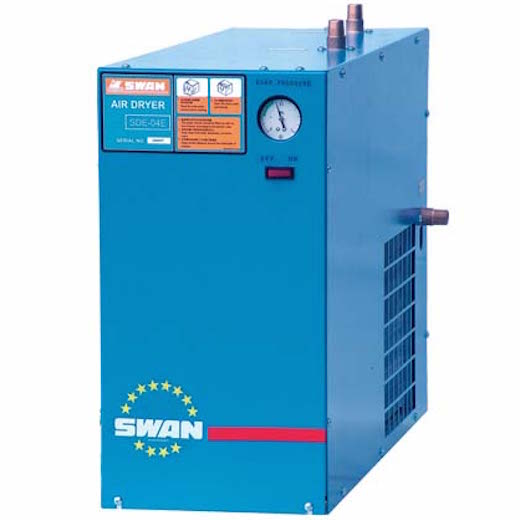

SWAN Air Dryer 600L/min, 5HP, 1/2", 80°C, 34kg SDE-4E

Product Code: SDE-4E
Availability: In Stock
Loading ...
Features:

Highly grade finned coil type Heat Exchanger to maximize heat transfer by the ample heat exchanging surface.
Microprocessor control system ensures the stable and quiet running; avoids starting/stopping vibration and breakdown.
Heavy duty reliable design which totally meet the working requirements under the warm and high humidity ambient conditions. Ample heat exchanger and efficient air circuit design make the pressure drop to the least.
Using environmental friendly refrigent R-407c or R-134a for all models. Dependable control system, easy operation, solid construction, least maintenance, and highest reliability all in one.
Share:

Model: SDE-4E
SWAN refrigerated air dryer for 5HP air compressor.

Features

  • Highly grade finned coil type Heat Exchanger to maximize heat transfer by the ample heat exchanging surface.
  • Microprocessor control system ensures the stable and quiet running; avoids starting/stopping vibration and breakdown.
  • Heavy duty reliable design which totally meet the working requirements under the warm and high humidity ambient conditions. Ample heat exchanger and efficient air circuit design make the pressure drop to the least.
  • Using environmental friendly refrigent R-407c or R-134a for all models. Dependable control system, easy operation, solid construction, least maintenance, and highest reliability all in one.

Specifications

Applicable Ranges
for Air Compressor
5HP
Flow Rate 600L/min
Dew Point 3~15°C
Inlet Temperature Max. 80°C
Ambient Temperature 2~43°C
Working Pressure 2~10 Bar
Inlet & Outlet 1/2"
Voltage 240V
Type of Refrigerant R-134a
Dimensions (L x W x H) 254mm x 722mm x 515mm
Weight 34kg
