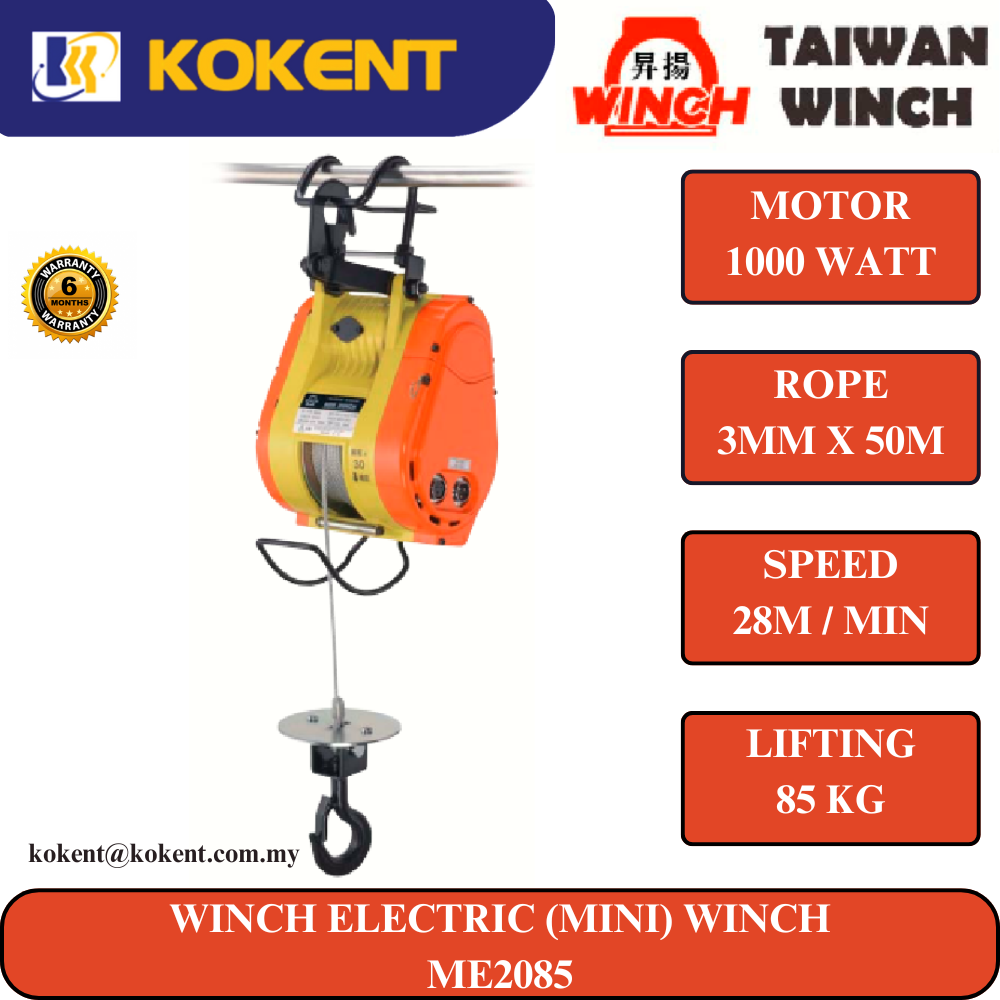

TAIWAN WINCH ELECTRIC (MINI) WINCH ME2085-28A50

TAIWAN WINCH ELECTRIC (MINI) WINCH ME2085-28A50
TAIWAN WINCH ELECTRIC (MINI) WINCH ME2085-28A50

TAIWAN WINCH ELECTRIC (MINI) WINCH ME2085-28A50

Product Code: ME2085-28A50
Availability: Pre Order
Loading ...
Share:

ME series

Features:

  •  Light weight & compact design allows mounting convenient.
  •  Equipped with magnetic contactor to avoid voltage drop, while ensuring powerful lifting.
  •  When rope touches the limit arm, hoisting is automatically stopped.
  •  A sensor arm stops the motor when the rope is reverse winding.
  •  Dynamic brake designs for both static and dynamic loading.
  •  Separated quick connection for convenience.
  •  360° universal joint saddle hook with safety latch
  •  Emergency stop function switch is available upon request
Model ME-2085-28A50 ME-2170-21B30 ME-2200-21C30 ME-2230-15C30 ME-2260-15C30 ME-2300-13C30 ME-2360-21D40 ME-2500-13E30
Rated Lifting
capacity
85kg 170kg 200kg 230kg 260kg 300kg 360kg 500kg
Speed 28M/min 21M/min 21M/min 15M/min 15M/min 13M/min 21M/min 13M/min
Power
consumption
1000W 1200W 1300W 1200W 1300W 1500W 2000W 2000W
Power source
(Single phase)
1PH 220V, 50/60Hz
Rated power
source
5A 6A 7A 6A 7A 7.5A 9A 9A
Rated
reciprocation
30% ED, 150 time/hour 30% ED, 150 time/hour
Packing
(LxWxH)
427X245X345mm 520X300X400mm
N.W. (kg) 19 36
G.W. (kg) 20 38
Accessories
Steel rope Ø3mmx50M Ø4mmx30M Ø5mmx30M Ø5mmx30M Ø5mmx30M Ø5mmx30M Ø6mmx40M Ø7mmx30M
Weight hook MH-100
Power Wire 5M
Operational cable 10M
Control switch 2-button switch
