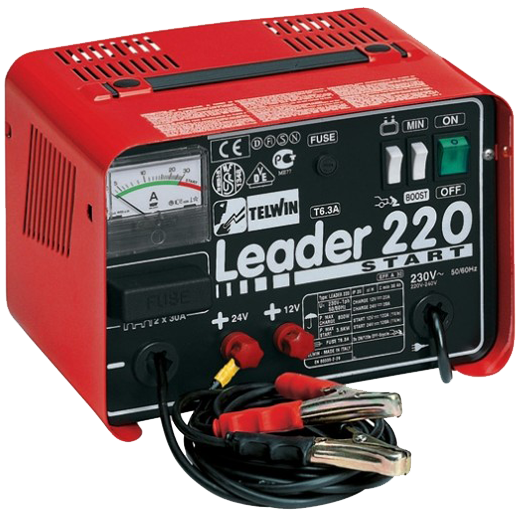

TELWIN Battery Charger 800-3600W 12/24V Battery 10kg Leader 220
Product Code: Leader 220 Start
Availability: Pre Order
Model: Leader 220 Start
Features
- Protected against overloading and reverse polarity
- Selector switch for normal charge or fast charge (boost)
- These chargers are equipped with a quick start function
- Shows the charging and starting current
- For a maximum starting current, the battery can first be charged for 5-10 minutes with fast charge (boost).
- The unit is then switched back to "start" in order to start the vehicle.
Technical Information
- Single-phase, portable battery chargers for charging lead accumulators
- With toggle switch for normal and fast charge (boost), quick start
- Equipped with protection against overloading and reverse polarity
- With ampere meter for charging and starting current
- Multiple charge current settings
- Mains voltage 230 V
Applications
- For charging 12V & 24Vbatteries
- Protected against overloading and reverse polarity
- Selector switch for normal charge or fast charge (boost)
- These chargers are equipped with a quick start function
- Shows the charging and starting current
- For a maximum starting current, the battery can first be charged for 5-10 minutes with fast charge (boost).
- The unit is then switched back to "start" in order to start the vehicle.
Specifications
| Voltage | 230V (Single phase) |
| Power Input | 800 W - 3600 W |
| Voltage (Laadspanning) | 12V - 24V |
| Charge Current (Laadstroom) | 30 A |
| Start Maximum | 180 A |
| Rated Reference Capacity (Min./Max.) | 30/400 A |
| Dimensions (L x W x H) | 225mm x 290mm x 205mm |
| Weight | 9.4 kg |
| Display of Charging and Starting Current | 2 |
| Suited for Lead Battery | Yes |
Standard Accessories
- Clamps
