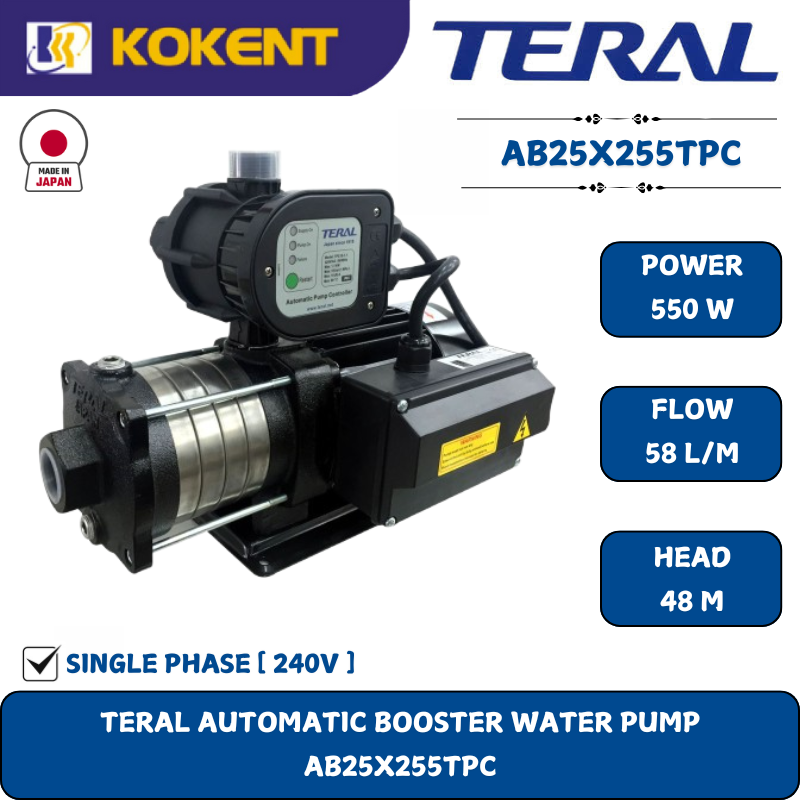

TERAL AUTOMATIC BOOSTER WATER PUMP [0.96HP.58L/M.48M] AB25X255TPC

TERAL HORIZONTAL MULTISTAGE PUMP

MODEL: AB 25 X 255 TPC

MOTOR: 0.55 kW, 1 x 220-240v, 50Hz

Max Flow: 3.5 m3/h

Max Pressure: 48m / 4.8 Bar

Pipe connection: 25mm x 25mm (Rp 1”)

Application

 Household – 3/4 bath room

 Liquid Transfer & Circulation

 Pressure Boosting

 Air-conditioning & cooling systems

 Water supply

Pump Specification

 Clean liquid without solid particles

 Liquid temperature range 0⁰C - 90⁰C

 Maximum ambient temperature 50⁰C

Pump Material List

 Pump head – Cast iron

 Intermediate Chamber / impeller / Shaft – SS 304

 Mechanical Seal – Silicon carbide / Carbon

 O-ring – EPDM

Motor Specification

 Rated Speed : 2850 rpm

 Enclosure class : IP54 (TEFC)

 Insulation Class : F
