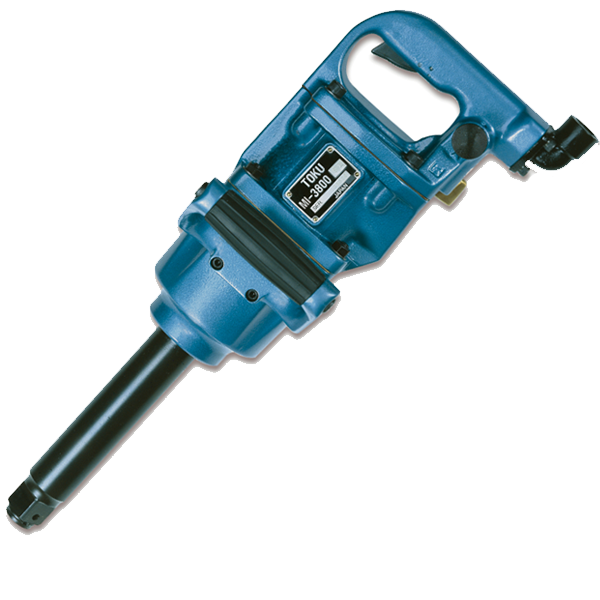

TOKU Air Impact Wrench 1" 50-150kg.m Pin-Less Clutch MI-3800GL
Product Code: MI-3800GL
Availability: In Stock
Model: MI-3800GL (200mm Long Shank)
Price inclusives 6%GST.
Features
- Pin-less clutch mechanism
- 2-step throttle for precise control
- Elastomer side handle grip
- 4-position regulator
Specifications
| Square Drive (inches) | 1 |
| Bolt Size (mm) | 38 |
| Torque Range (kg.m) | 50 - 150 |
| Maximum Torque (kg.m) | 200 |
| Net Weight (kg) | 10.5 |
| Overall Length (mm) | 505 |
| Free Speed (rpm) | 4700 |
| Avg. Air Consumption | 35 cfm 1.0m3/min |
| Air Inlet (pt) | 1/2 |
| Hose Size (inches) | 1/2 |
| Shank Size | 200 |
- Air pressure required : 6 kg/cm2 = 6 bar
- Torque : 1.0 kg.m = 9.807Nm = 7.233 ft.lb
- All impact wrench contains forward and reverse actions
