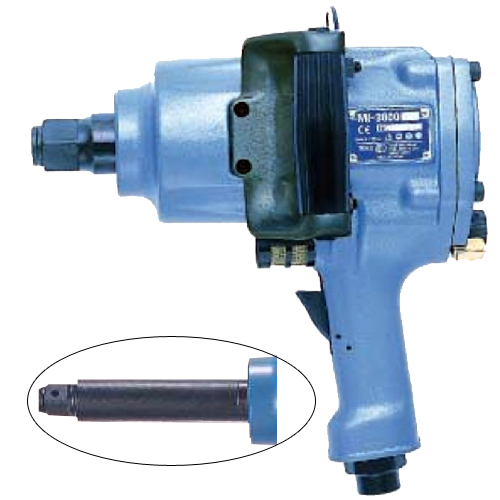

TOKU Air Impact Wrench 1" 50-150kg.m Pin-Less Clutch MI-3800PL

TOKU Air Impact Wrench 1
TOKU Air Impact Wrench 1

TOKU Air Impact Wrench 1" 50-150kg.m Pin-Less Clutch MI-3800PL

Product Code: MI-3800PL
Availability: In Stock
Loading ...
Share:

Model: MI-3800PL (200mm Long Shank)

Price inclusives 6%GST.

Features

  • Pin-less clutch mechanism
  • 2-step throttle for precise control
  • Elastomer side handle grip
  • 360° free rotating exhaust
  • 4-Position regulator

Specifications

Square Drive (inches) 1
Bolt Size (mm) 38
Torque Range (kg.m)   50 - 150
Maximum Torque (kg.m)   200
Net Weight (kg) 10.8
Overall Length (mm) 430
Free Speed (rpm) 4700
Avg. Air Consumption 35 cfm
1.0m3/min
Air Inlet (pt) 1/2
Hose Size (inches) 1/2
Shank Size 200 mm
  • Air pressure required : 6 kg/cm2 = 6 bar
  • Torque : 1.0 kg.m = 9.807Nm = 7.233 ft.lb
  • All impact wrench contains forward and reverse actions
