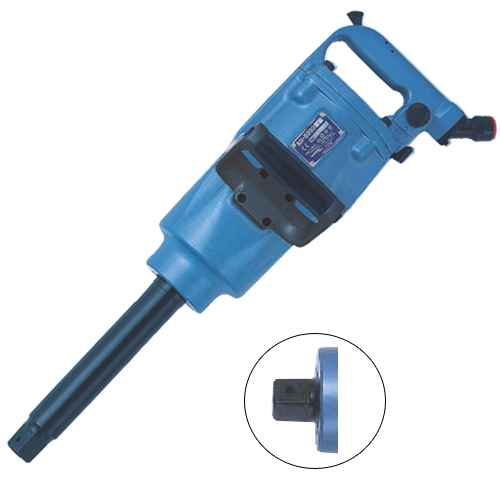

TOKU Air Impact Wrench 1" 50-220kg.m Pin-Less Clutch MI-5000GS

Product Code: MI-5000GS
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Model: MI-5000GS (Short Shank)

Price inclusives 6%GST.

Features

  • Pin-less clutch mechanism
  • 2-step throttle for precise control
  • Elastomer side handle grip
  • 4-position regulator



Specifications

Square Drive (inches) 1
Bolt Size (mm) 50
Torque Range (kg.m)   50 - 220
Maximum Torque (kg.m)   270
Net Weight (kg) 16.2
Overall Length (mm) 620
Free Speed (rpm) 3700
Avg. Air Consumption 35 cfm
1.0m3/min
Air Inlet (pt) 1/2
Hose Size (inches) 1/2
Shank Size N/A
  • Air pressure required : 6 kg/cm2 = 6 bar
  • Torque : 1.0 kg.m = 9.807Nm = 7.233 ft.lb
  • All impact wrench contains forward and reverse actions
