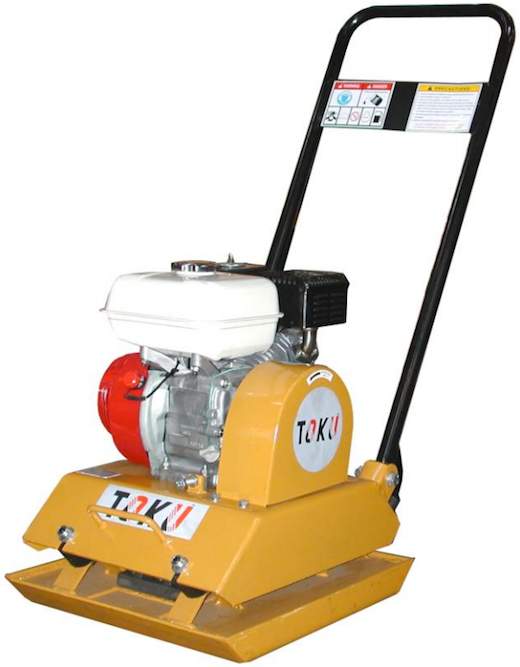

TOKU Compactor Diesel Engin CF170F 506x432 5200rpm 78kg TKL-80D (VP)
Product Code: TKL-80D (Atlanta Diesel Engine CF170F)
Availability: Pre Order
Model: TKL-80D (Atlanta Diesel Engine CF170F)
Price inclusives 6%GST.
Features
The economical TKL-series Plate Compactor is a reliable machine for general contractor. The machine is equipped with heavy duty clutch and strong exciter.
Specifications
| Base Plate Diameter (L x W)(mm) | 506 x 432 |
| Exciter Speed (rpm) | 5200 |
| Travel Speed (m/min) | Up to 20 |
| Grade Ability (Deg) | Up to 15 |
| Centrifigure Force (kn) | 12 |
| Min. Compaction Depth (mm) | 200 |
| Engine | Atlanta CF170F |
| Engine Type | Air Cooled, Gasoline |
| Max. Output (hp/rpm) | 4.2/4000 |
| Starting System | Recoil |
| Machine Weight (kg) | 78 |
