TOKU Compactor Robin Engine EY-20D 506 x 432 5200rpm 78kg TKL-80 (VP)

TOKU Compactor Robin Engine EY-20D 506 x 432 5200rpm 78kg TKL-80 (VP)
TOKU Compactor Robin Engine EY-20D 506 x 432 5200rpm 78kg TKL-80 (VP)

TOKU Compactor Robin Engine EY-20D 506 x 432 5200rpm 78kg TKL-80 (VP)

Product Code: TKL-80 (Robin Engune EY-20D)
Availability: Pre Order
Loading ...
Share:

Model: TKL-80 (Robin Engune EY-20D)

Price inclusives 6%GST.

Features

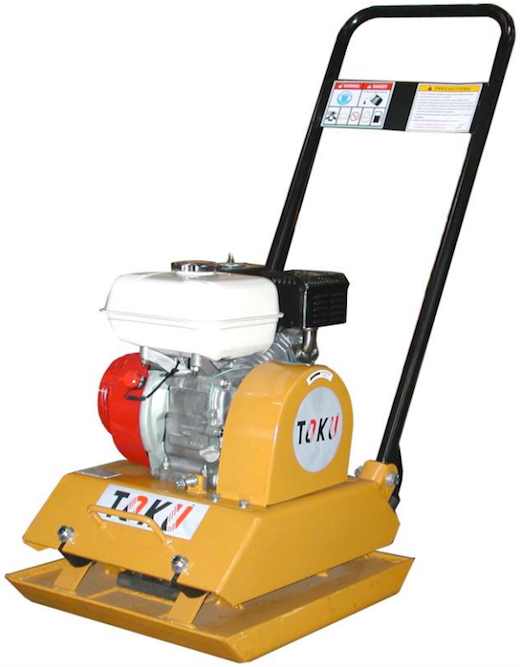

The economical TKL-series Plate Compactor is a reliable machine for general contractor. The machine is equipped with heavy duty clutch and strong exciter.

Specifications

Base Plate Diameter (L x W)(mm)    506 x 432
Exciter Speed (rpm) 5200
Travel Speed (m/min) Up to 20
Grade Ability (Deg) Up to 15
Centrifigure Force (kn) 12
Min. Compaction Depth (mm) 200
Engine Robin EY-20D
Engine Type Air Cooled, Gasoline
Max. Output (hp/rpm) 5/4000
Starting System Recoil
Machine Weight (kg) 78
