TOKU Manual Fed Concrete Mixer 5HP Diesel Engine, 210L, TK-7TM (VP)
TOKU Manual Fed Concrete Mixer 5HP Diesel Engine, 210L, TK-7TM (VP)

TOKU Manual Fed Concrete Mixer 5HP Diesel Engine, 210L, TK-7TM (VP)

Product Code: TK-7TM (5hp Air-Cooled Diesel Engine)
Availability: Pre Order
Loading ...
017 432 8850016 397 5838
Share:

Model: TK-7TM (5hp Air-Cooled Diesel Engine)

Price inclusives 6%GST.

Features

  • A heavy duty mixer designed for professional and rental applications.
  • Simple and effective design that has been used for decades and still remains largely popular.
  • Chassis fabricated from mild steel channels, plates and angels for rigidity

Specifications

Mixing Drum Using heavy cast iron with mild steel pot and blade-individually renewable.
Capacityy Unmixed Liter (cu.ft)      300 (10)
Capacity Mixer Liter (cu.ft) 210 (7)
Loading Height Inch (mm) 37 (940)
Drum Opening Inch (mm) 21 (533)
Transmission Drive-unit-by roller chain and sprocket. From driving shaft to drum-by level
gear and roller type bearing.
Chassis Channels Fabricated from mild steel channels, plates and angles for rigidity.
Discharge Discharge height is 16inch or 406mm. Tipping position is controlled by a hand
wheel and can be fixed at various mixing positions.
Prime Mover 5HP single cylinder air-cooled diesel engine.
Dimensions (L x W x H) 2250mm x 1300mm x 1530mm
Weight 700 kg









Images

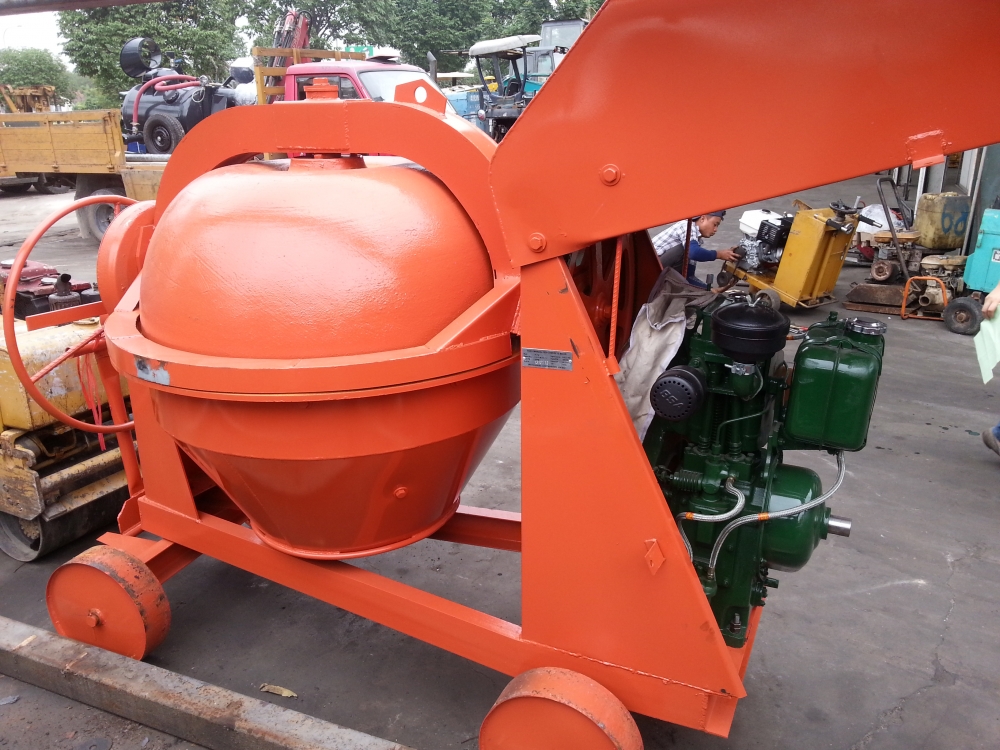

TOKU Manual Fed Concrete Mixer 5HP Diesel Engine, 210L, TK-7TM TOKU Manual Fed Concrete Mixer 5HP Diesel Engine, 210L, TK-7TM
