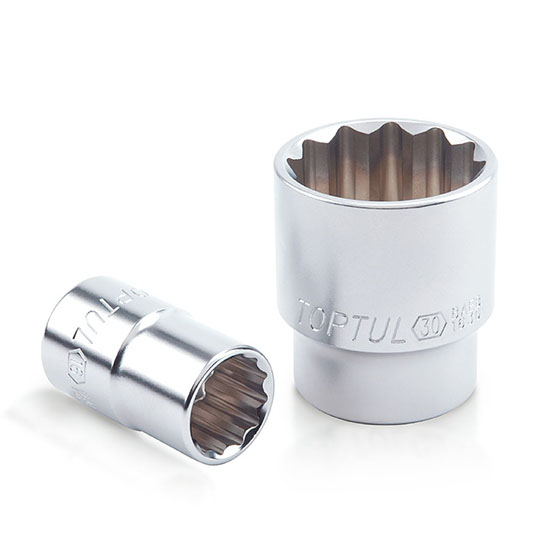

Toptul 1/2" DR. 12PT Sockets - METRIC

Toptul 1/2
Toptul 1/2

Toptul 1/2" DR. 12PT Sockets - METRIC

Product Code: BAEB 1/2
Availability: In Stock
RM0.00
Loading ...
Share:

12PT Sockets



1/2" DR. 12PT Sockets - METRIC



 ITEM NO: BAEB series
 Mirror / Satin Chrome Finished
 METRIC

 CR-V
 DIN3124

Features



DRIVE TYPE ITEM NO. SIZE
(mm)
L
(mm)
D1
(mm)
D2
(mm)
BOX
(PCS)
CTN
(PCS)
Mirror Satin

1/2"
12.5mm sq.

A

BAEB1608 8 38 21.8 13.2 15 240
BAEB1609 9 38 21.8 13.9 15 240
BAEB1610 10 38 21.8 15.0 15 240
BAEB1611 11 38 21.8 16.3 15 240
BAEB1612 12 38 21.8 17.6 15 240
BAEB1613 13 38 21.8 18.8 15 240
BAEB1614 14 38 21.8 20.4 15 240
BAEB1615 15 38 21.8 20.8 15 240
BAEB1616 16 38 23.1 21.8 15 240

B

BAEB1617 17 38 22.0 23.8 10 160
BAEB1618 18 38 23.0 25.8 10 160
BAEB1619 19 38 23.0 25.8 10 160
BAEB1620 20 38 24.0 27.8 10 160
BAEB1621 21 38 25.0 27.8 10 160
BAEB1622 22 40 26.0 29.8 10 160
BAEB1623 23 40 27.0 31.8 10 160
BAEB1624 24 40 28.0 31.8 10 100
BAEB1625 25 42 30.0 33.8 10 100
BAEB1626 26 42 30.0 33.8 10 100
BAEB1627 27 44 30.0 35.8 10 100
BAEB1628 28 44 32.0 37.8 10 100
BAEB1629 29 44 32.0 37.8 10 100
BAEB1630 30 45 34.0 39.8 10 100
BAEB1632 32 45 36.0 41.8 10 100
