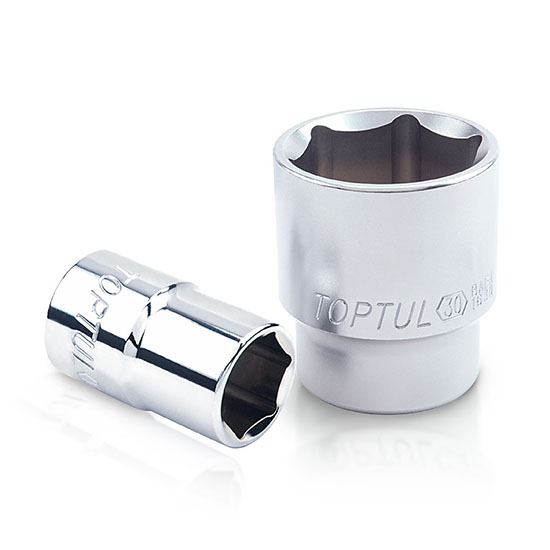

Toptul 1/2" DR. 6PT Sockets - METRIC

Toptul 1/2
Toptul 1/2

Toptul 1/2" DR. 6PT Sockets - METRIC

Product Code: Toptul 1/2" DR. 6PT Sockets - METRIC
Availability: In Stock
RM0.00
Loading ...
Share:

6PT Sockets



1/2" DR. 6PT Sockets - METRIC



 ITEM NO: BAEA series
 Mirror / Satin Chrome Finished
 METRIC

 CR-V
 DIN3124

Features



DRIVE TYPE ITEM NO. SIZE
(mm)
L
(mm)
D1
(mm)
D2
(mm)
BOX
(PCS)
CTN
(PCS)
Mirror Satin

1/2"
12.5mm sq.

A

BAEA1608 8 38 21.8 13.2 15 240
BAEA1609 9 38 21.8 13.9 15 240
BAEA1610 10 38 21.8 15.0 15 240
BAEA1611 11 38 21.8 16.3 15 240
BAEA1612 12 38 21.8 17.6 15 240
BAEA1613 13 38 21.8 18.8 15 240
BAEA1614 14 38 21.8 20.4 15 240
BAEA1615 15 38 21.8 20.8 15 240
BAEA1616 16 38 23.1 21.8 15 240

B

BAEA1617 17 38 22.0 23.8 10 160
BAEA1618 18 38 23.0 25.8 10 160
BAEA1619 19 38 23.0 25.8 10 160
BAEA1620 20 38 24.0 27.8 10 160
BAEA1621 21 38 25.0 27.8 10 160
BAEA1622 22 40 26.0 29.8 10 160
BAEA1623 23 40 27.0 31.8 10 160
BAEA1624 24 40 28.0 31.8 10 100
BAEA1625 25 42 30.0 33.8 10 100
BAEA1626 26 42 30.0 33.8 10 100
BAEA1627 27 44 30.0 35.8 10 100
BAEA1628 28 44 32.0 37.8 10 100
BAEA1629 29 44 32.0 37.8 10 100
BAEA1630 30 45 34.0 39.8 10 100
BAEA1631 31 45 36.0 40.8 10 100
BAEA1632 32 45 36.0 41.8 10 100
BAEA1634 34 45 38.0 43.8 5 40
