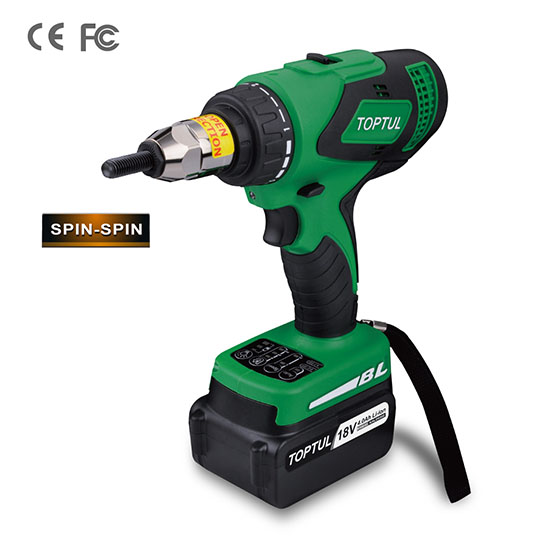

Toptul Brushless Cordless Rivet Nut Tool

Toptul Brushless Cordless Rivet Nut Tool
Toptul Brushless Cordless Rivet Nut Tool

Toptul Brushless Cordless Rivet Nut Tool

Product Code: KPNA0510
Availability: In Stock
RM0.00
Loading ...
Share:

Brushless cordless

Brushless Cordless Rivet Nut Tool

Brushless Cordless Rivet Nut ToolBrushless Cordless Rivet Nut Tool

Brushless Cordless Rivet Nut Tool


 ITEM NO: KPNA0510
 Powerful motor with brushless design for maximum output traction power
 Brushless motor provides greater working life time than brush motor
 Metal gearbox provides great efficient power transmission and durability of tools
 High & Low speed control for optimal performance during all applications
 Two-position of gear ratio setting design allows user to adjust the transmission force in various operation
 One hand F/R switch design for easy one-hand operation
 Clutch Mechanism design with five-positions of rotary switch in housing for controlling output torque in work
 Fast and simple exchange of threaded mandrel
 Easy and safe drill-on of the blind rivet nut in various type and size
 Temperature and electric current overload protection
 Automatic reversing
 Precision IC board control
 LED switch on/off button
 Battery power indication
 Ergonomic comfort-grip handle to reduce user fatigue
 BLOW CASE: W400 x D320 x H100 (mm)


Contents Q'TY
Brushless Cordless Rivet Nut Tool (Spin-Spin) 1
Li-ion Battery 2
Charger 1
Parts Kit:
Nozzles - M5, M6, M8, M10
Screw Mandrels - M5, M6, M8, M10
Screw Mandrel Adapter - M5, M6, M8, M10
Screw Mandrel Fixed Seat - M5, M6, M8, M10
1
Rivet Nut Head / Nozzle Wrench 1

Features



ITEM NO.
  KPNA0510
SPECIFICATIONS CTN: 3
Types of Plug Adapter
(power charger)
Rivet Nut M5, M6, M8, M10 (Steel)
A.

(US)
E.

(EU)
Z.

(AU/NZ)
U.

(UK)
J.

(JP)

Free Speed 0-240 / 370 / 720 / 1120 RPM
Speed Selector 4
Clutch Settings 5
Power Battery Rechargeable Li-ion Battery 18V 4.0Ah
Power Supply AC 100 - 240V / 50 - 60Hz
Power Consumption DC 21V 3.0A
Type: JP
Battery Rechargeable Li-ion Battery 18V 4.0Ah
Power Supply AC 100 - 240V / 50 - 60Hz
Power Consumption DC 21V 2.3A
Charging Time 1-2 Hour
Charging Temperature 0°C - 40°C
Operation Temperature 0°C - 40°C
Storage Temperature -20°C - 40°C
Overall Length 9-21/32" / 245 mm
Net Weight 3.96 lbs / 1.8 kgs (with battery)
