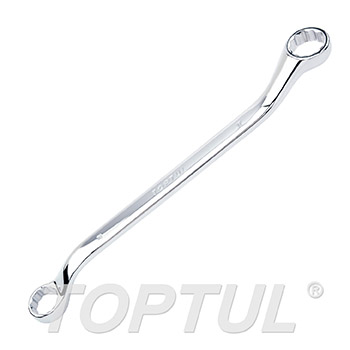

Toptul Double Ring Wrench 45° Offset - METRIC (Mirror Polished)

Product Code: Double Ring Wrench 45° Offset

Availability: In Stock

RM0.00

017 432 8850 016 397 5838

Description

Double Ring Wrench 45° Offset

Double Ring Wrench 45° Offset - METRIC (Mirror Polished)

ITEM NO: AAAH series
Chrome Vanadium Steel Material
45° offset ring end in design for convenient operation in recess
Professional quality for maximum durability and corrosion resistance
Mirror Polished
METRIC

Features

ITEM NO.	SIZE (mm)	L (mm)	B (mm)	D (mm)	S1 (mm)	S2 (mm)	BOX (PCS)	CTN (PCS)
Mirror	SIZE (mm)	L (mm)	B (mm)	D (mm)	S1 (mm)	S2 (mm)	BOX (PCS)	CTN (PCS)
AAAH0608	6x8	165	10.3	12.7	5.2	5.7	10	240
AAAH0809	8x9	170	13.5	15.0	5.7	6.2	10	240
AAAH1011	10x11	180	15.2	17.2	6.2	6.7	10	120
AAAH1113	11x13	206	18.0	21.0	7.7	8.2	10	80
AAAH1213	12x13	206	19.5	21.0	7.7	8.2	10	80
AAAH1415	14x15	232	21.7	23.5	8.2	8.7	10	80
AAAH1617	16x17	237	23.7	25.7	9.7	9.9	10	80
AAAH1719	17x19	270	26.5	29.2	10.7	11.2	10	80
AAAH1819	18x19	270	27.7	29.2	10.7	11.2	10	80
AAAH1922	19x22	292	28.7	32.2	11.4	11.9	5	30
AAAH2022	20x22	292	28.7	32.2	11.4	11.9	5	30
AAAH2123	21x23	327	32.2	34.2	11.9	12.7	5	30
AAAH2224	22x24	327	32.2	34.2	11.9	12.7	5	30
AAAH2326	23x26	362	34.7	38.2	13.2	13.7	5	30
AAAH2426	24x26	362	34.7	38.2	13.2	13.7	5	30
AAAH2427	24x27	362	34.7	38.2	13.2	13.7	5	30
AAAH2430	24x30	372	39.5	42.1	13.2	14.7	5	30
AAAH2528	25x28	372	39.5	42.1	13.2	14.7	5	30
AAAH2629	26x29	372	39.5	42.1	13.2	14.7	5	30
AAAH2729	27x29	380	40.7	45.5	14.7	15.7	5	30
AAAH2730	27x30	380	40.7	45.5	14.7	15.7	5	30
AAAH2732	27x32	380	40.7	45.7	14.7	15.7	5	30
AAAH2932	29x32	392	44.7	48.5	16.2	17.7	2	12
AAAH3032	30x32	392	44.7	48.5	16.2	17.7	2	12
AAAH3641	36x41	440	54.5	62.5	18.2	20.2	2	12
AAAH4146	41x46	470	61.7	69.7	19.2	20.7	2	8
AAAH5560	55x60	610	83.7	91.7	22.7	23.7	2	4
