Toptul Hex Bit Sockets - METRIC & SAE (Mirror Polished)
Toptul Hex Bit Sockets - METRIC & SAE (Mirror Polished)

Toptul Hex Bit Sockets - METRIC & SAE (Mirror Polished)

Product Code: BCDA / BDDA
Availability: In Stock
RM0.00
Loading ...
017 432 8850019 209 0701
Share:

Bit Sockets

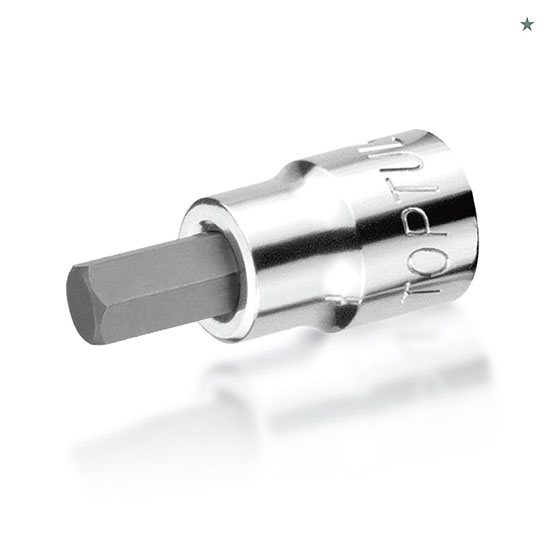

Hex Bit Sockets - METRIC & SAE (Mirror Polished)



 ITEM NO: BCDA series / BDDA series
 Mirror Polished
 METRIC & SAE
 CR-V+S2
 DIN7422

Features



METRIC
DRIVE ITEM NO. SIZE
(mm)		 L
(mm)		 D
(mm)		 BOX
(PCS)		 CTN
(PCS)
Mirror
1/4"
6.3mm sq.
 BCDA082E12 2.5 37 11.9 30 540
BCDA080312 3 37 11.9 30 540
BCDA080712 7 37 11.9 30 540
3/8"
10mm sq.
 BCDA120312 3 48 17.9 10 180
BCDA120412 4 48 17.9 10 180
BCDA120712 7 48 17.9 10 180
BCDA120812 8 48 17.9 10 180
1/2"
12.5mm sq.
 BCDA160412 4 55 23.9 15 240
BCDA160512 5 55 23.9 15 240
BCDA160612 6 55 23.9 15 240
BCDA160712 7 55 23.9 15 240
BCDA160812 8 55 23.9 15 240
BCDA161012 10 55 23.9 10 160
BCDA161212 12 55 23.9 10 160
BCDA161412 14 55 23.9 10 100
BCDA161712 17 55 25.8 10 100
BCDA161912 19 55 25.8 10 100



SAE
DRIVE ITEM NO. SIZE
(inch)		 L
(mm)		 D
(mm)		 BOX
(PCS)		 CTN
(PCS)
Mirror

1/4"
6.3mm sq.

 BDDA080412 1/8 37 11.9 30 540
BDDA080512 5/32 37 11.9 30 540
BDDA080612 3/16 37 11.9 30 540
BDDA080712 7/32 37 11.9 30 540
BDDA080812 1/4 37 11.9 30 540
3/8"
10mm sq.
 BDDA120512 5/32 48 17.9 10 180
BDDA120612 3/16 48 17.9 10 180
BDDA120712 7/32 48 17.9 10 180
BDDA120812 1/4 48 17.9 10 180
BDDA121012 5/16 48 17.9 10 180
BDDA121212 3/8 48 17.9 10 180
1/2"
12.5mm sq.
 BDDA161212 3/8 55 23.9 10 160
BDDA161412 7/16 55 23.9 10 160
BDDA161612 1/2 55 23.9 10 100
BDDA161812 9/16 55 23.9 10 100
BDDA162012 5/8 55 25.8 10 100
BDDA162412 3/4 55 25.8 10 100
