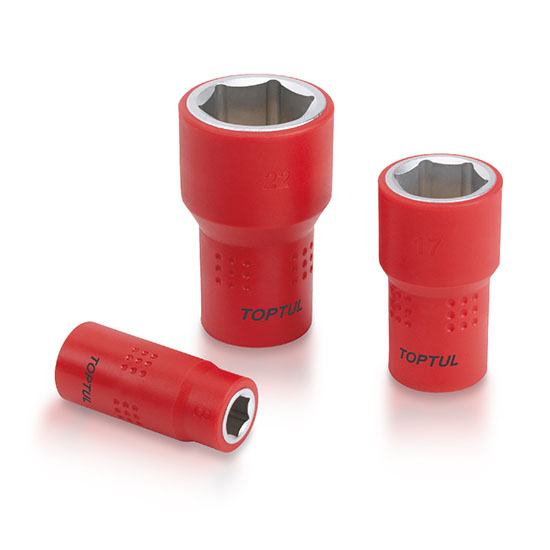

Toptul VDE Insulated 6PT Flank Sockets

Product Code: BAEA VDE

Availability: In Stock

RM0.00

017 432 8850 019 209 0701

Description

VDE Insulated

VDE Insulated 6PT Flank Sockets

ITEM NO: BAEA series
Chrome Vanadium Steel Material
Insulation meets VDE and international standard DIN EN/IEC 60900
Insulation to edge of socket
METRIC
DIN 3124
ISO 2725-1
DIN ISO 1711-1

Features

DRIVE	TYPE	ITEM NO.	SIZE (mm)	L (mm)	D1 (mm)	D2 (mm)	BOX (PCS)	CTN (PCS)
1/4" 6.3mm sq.	A	BAEA0806V4	6	41.0	18	13.1	25	400
		BAEA0807V4	7	41.0	18	14.7	25	400
		BAEA0808V4	8	41.0	18	15.9	25	400
	B	BAEA0810V4	10	41.0	18	18.4	20	320
		BAEA0812V4	12	41.0	18	20.9	15	240
		BAEA0813V4	13	41.0	18	22.3	15	240
		BAEA0814V4	14	41.0	18	23.5	15	240
3/8" 10mm sq.	A	BAEA1208V4	8	44.5	23	15.3	15	240
		BAEA1210V4	10	44.5	23	16.7	15	240
		BAEA1212V4	12	44.5	23	19.5	15	240
		BAEA1213V4	13	44.5	23	20.9	15	240
		BAEA1214V4	14	44.5	23	22.1	15	240
	B	BAEA1217V4	17	46.5	23	26.0	15	180
		BAEA1219V4	19	46.5	23	28.6	10	160
		BAEA1222V4	22	46.5	23	32.3	5	80
1/2" 12.5mm sq.	A	BAEA1610V4	10	55.0	27	18.7	10	120
		BAEA1611V4	11	55.0	27	19.8	10	120
		BAEA1612V4	12	55.0	27	21.2	10	120
		BAEA1613V4	13	55.0	27	22.4	10	120
		BAEA1614V4	14	55.0	27	23.8	10	120
	B	BAEA1617V4	17	55.0	27	27.5	10	120
		BAEA1619V4	19	55.0	27	30.0	10	120
		BAEA1622V4	22	55.0	27	34.0	10	120
		BAEA1624V4	24	55.0	27	36.5	10	120
