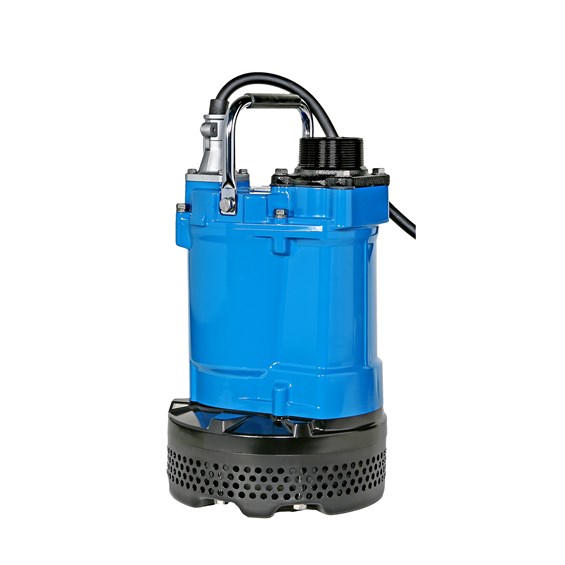

TSURUMI DEWATERING PUMP (3-PHASE) KTV2-37H
Product Code: KTV2-37H
Availability: Pre Order
Dewatering Pumps
The KTV-series is a submersible three-phase portable drainage pump. Though it is a three-phase unit, the pump is designed to weigh lighter for portability, yet it can be used for pumping liquid found in ordinary construction and foundation works. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.
Performance Curves
Model Selection
| Discharge Bore (mm) |
Model | Motor Output (kW) |
Phase | Starting Method |
Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | KTV2-8 | 0.75 | Three | D.O.L. | 8.5 |
| 50(80)* | KTV2-15 | 1.5 | Three | D.O.L. | 8.5 |
| 50(80)* | KTV2-22 | 2.2 | Three | D.O.L. | 8.5 |
| 50 | KTV2-37H | 3.7 | Three | D.O.L. | 8.5 |
| 80(100)* | KTV2-37 | 3.7 | Three | D.O.L. | 8.5 |
| 80(100)* | KTV3-55 | 5.5 | Three | D.O.L. | 8.5 |
