Product Code: HSZ2.4S
Availability: Pre Order
Loading ...
Share:

Portable Dewatering Pumps
(Automatic)

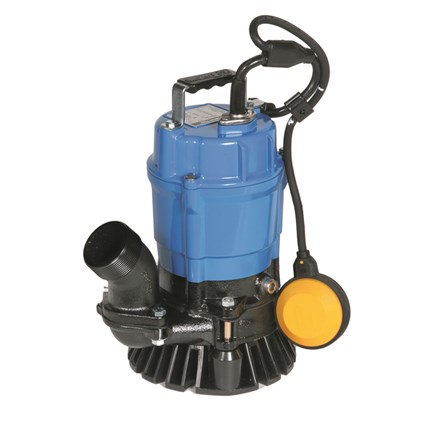

The HSZ-series is a submersible single-phase automatic portable drainage pump. The automatic operation, controlled by a single float switch, reduces consumption and extends operating life. Though the pump is a single-phase unit, it has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters. The shaft-mounted agitator prevents "Air Lock" that tends to take place on vortex or semi-vortex pumps.

Performance Curves
Model Selection
Discharge
Bore
(mm)
Model Motor
Output
(kW)
Phase Starting
Method
Solids
Passage
(mm)
50 HSZ2.4S 0.4 Single Capacitor Run 7
50 HSZ2.75S 0.75 Single Capacitor Run 7
80 HSZ3.75S 0.75 Single Capacitor Run 7
