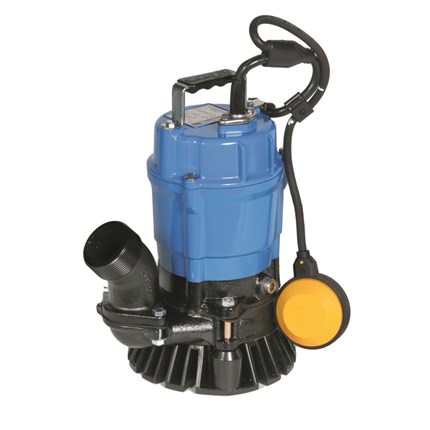

TSURUMI PORTABLE DEWATERING PUMP ( AUTOMATIC ) HSZ2.75S
Product Code: HSZ2.75S
Availability: Pre Order
Portable Dewatering Pumps
(Automatic)
The HSZ-series is a submersible single-phase automatic portable drainage pump. The automatic operation, controlled by a single float switch, reduces consumption and extends operating life. Though the pump is a single-phase unit, it has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters. The shaft-mounted agitator prevents "Air Lock" that tends to take place on vortex or semi-vortex pumps.
Performance Curves
Model Selection
| Discharge Bore (mm) |
Model | Motor Output (kW) |
Phase | Starting Method |
Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | HSZ2.4S | 0.4 | Single | Capacitor Run | 7 |
| 50 | HSZ2.75S | 0.75 | Single | Capacitor Run | 7 |
| 80 | HSZ3.75S | 0.75 | Single | Capacitor Run | 7 |
