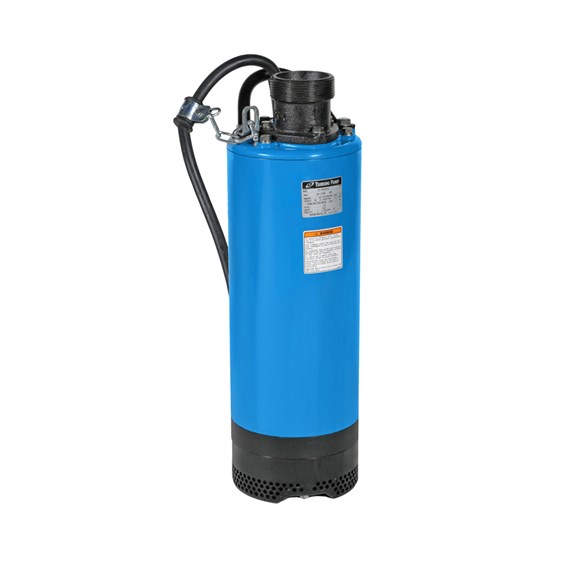

TSURUMI PORTABLE DEWATERING PUMP ( MANUAL ) LB-1500
Product Code: LB-1500
Availability: Pre Order
Portable Dewatering Pumps
The LB-series is a submersible single-phase portable drainage pump. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. Every LB model is slim design enough to be accommodated in an 8-inch pipe. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.*
Performance Curves
Model Selection
| Discharge Bore (mm) |
Model | Motor Output (kW) |
Phase | Starting Method |
Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | LB-480 | 0.48 | Single | Capacitor Run | 6 |
| 50(80)* | LB-800 | 0.75 | Single | Capacitor Run | 6 |
| 50(80)* | LB-1500 | 1.5 | Single | Capacitor Start | 6 |
* 80mm discharge bore available on special request.
