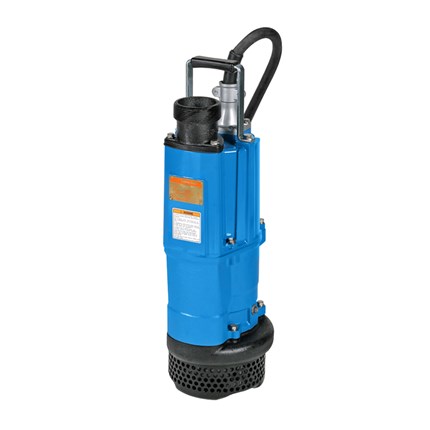

TSURUMI PORTABLE DEWATERING PUMP ( MANUAL ) NK3-22L
Product Code: NK3-22L
Availability: Pre Order
Portable Dewatering Pumps
The NK-series is a submersible single-phase portable drainage pump having a larger output motor. Though it is a single-phase unit, the pump has the durability equivalent to three-phase drainage pumps, since the wear parts are made of abrasion-resistant materials. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.The slim design allows the pump to be placed in a confined space.
Performance Curves
Model Selection
| Discharge Bore (mm) |
Model | Motor Output (kW) |
Phase | Starting Method |
Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | NK3-15 | 1.5 | Single | Capacitor Start | 8.5 |
| 50 | NK4-22 | 2.2 | Single | Capacitor Start + Capacitor Run |
8.5 |
| 80 | NK3-22L | 2.2 | Single | Capacitor Start + Capacitor Run |
8.5 |
