    Description

    Model: UVP32-20

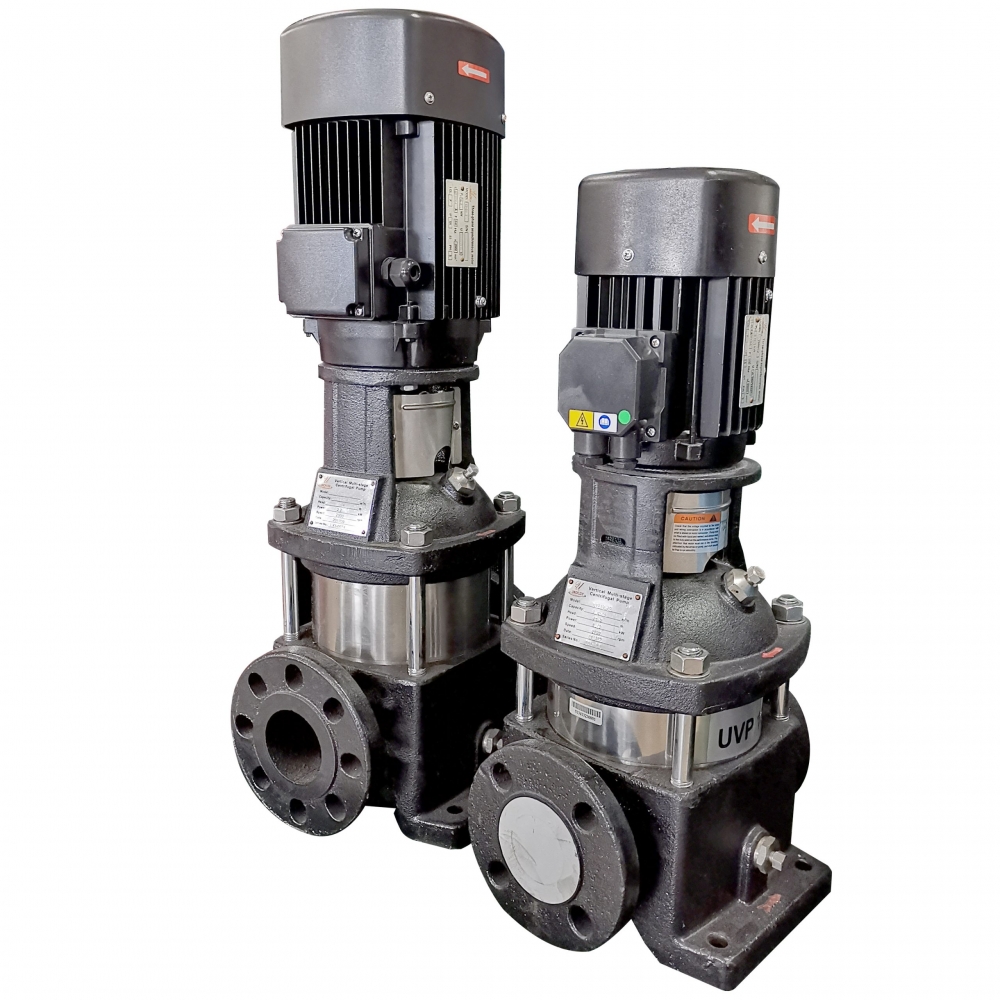

    Unoflow UVP32-20 vertical multistage centrifugal water pump.

    Model in diagram: CV32-2

    • 3 phase

    Included Flange Assembly

    • Flange x 2pc
    • Rubber gasket x 2pc
    • Bolt and Nuts x 8sets

    Features

    • Non-self priming vertical multistage centrifugal pump.
    • All pumps are equipped with a maintenance free mechanical seal set of the cartridge type.
    • Fan-cooled, 2-pole standard motor.
    • Motor protection
      a) Single phase: Built-in thermal overload switch.
      b) Three phase: Must be connected to a motor starter in accordance with local regulations.

    Ambient temperature

    • up to +40 °C

    Pump Material:

    • Cast iron Base
    • Stainless steel pump body

    Applications

    • Distributions of water.
    • Pressure boosting in high-rise building and hotels.
    • Pressure boosting in fire fighting systems.
    • Aqua farming.
    • Boiler feed and condensate systems.
    • Oil and alcohol; Glycol and coolants.
    • Swimming pool.
    • Field irrigation, sprinkler irrigation, drip-feed irrigation.

    Specifications

    Size Discharge 2½”x 2½”
    Power 4000 W / Three phase

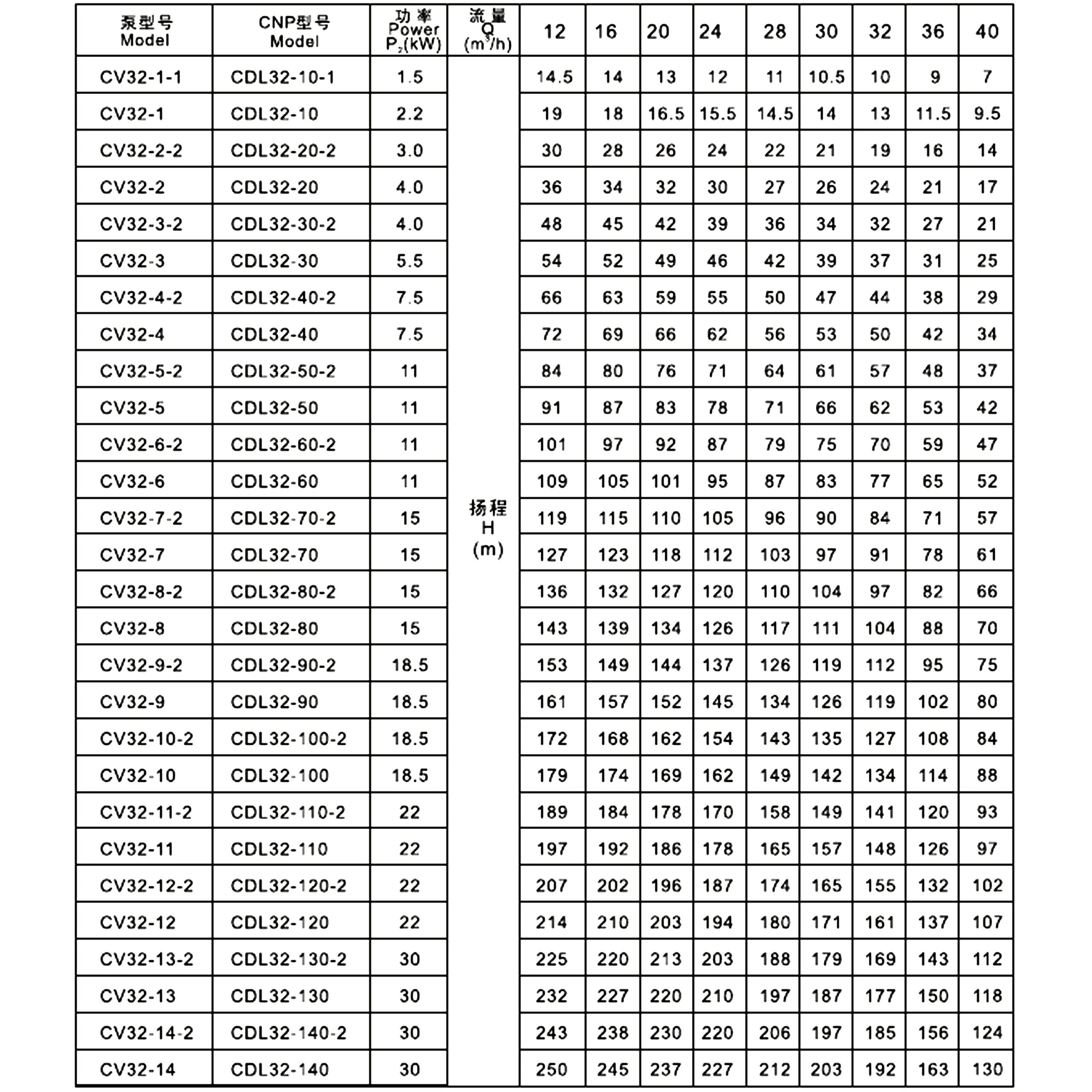

    Flow Rate 200 ~ 666 L/min
    Head 36 ~ 17 meters
    Manometric Suction Lift Max. 7 meters
    Liquid Temperature Max. +90°C
    Environment Temperature Max. +40°C
    Dimensions (L x W x H) 320mm x 197mm x 830mm
    Weight 88kg
