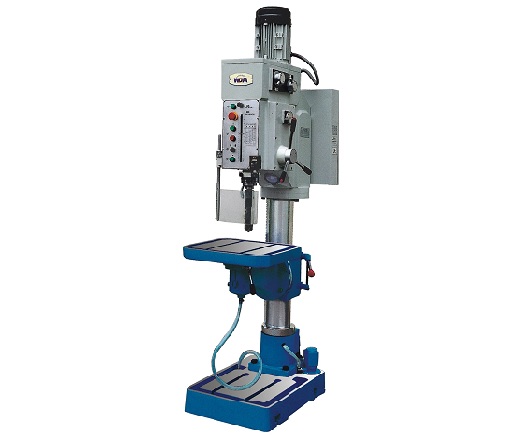

Vertical Drilling (II)
Vertical Drilling (II)

Vertical Drilling (II)

Product Code: Z5050
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:
Model Z5050
Maximum Drilling Capacity (mm) 50
Maximum Tapping Capacity (mm) M30
Diameter of Column (mm) 180
Spindle Travel (mm) 240
Distance Spindle Axis to Column Generating Line (mm) 360
Maximum Distance Spindle Nose to Table (mm) 570
Maximum Distance Spindle Nose to Base (mm) 1160
Spindle Taper MT4 or MT5
Spindle Speeds Range (r/min) 42 - 2050
Spindle Speeds Series  12
Spindle Feeds (mm/r) 0.07, 0.15, 0.26, 0.40
Dimension of Worktable Surface (mm) 550 x 470
Table Travel (mm) 550
Dimension of Base Table (mm) 450 x 440
Overall Height (mm) 2380
Main Motor (kw) 2.2 / 2.8
Coolant Motor (w) 40
G.W / N.W (kg) 800/730
Packing Dimension (cm) 108 x 62 x245
