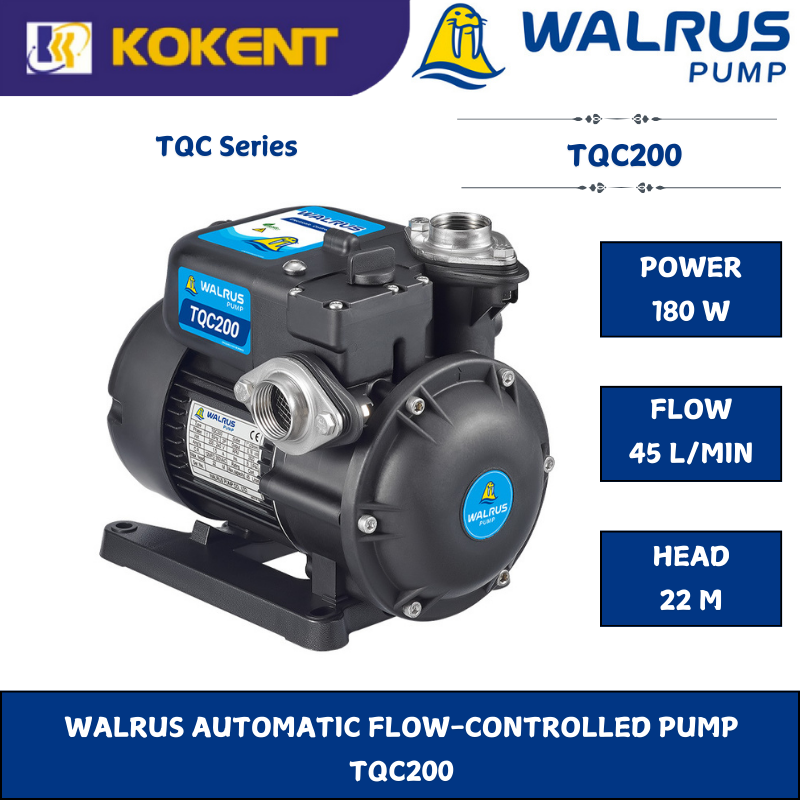

WALRUS Automatic Flow-Controlled Pump TQC200

WALRUS Automatic Flow-Controlled Pump TQC200
WALRUS Automatic Flow-Controlled Pump TQC200

WALRUS Automatic Flow-Controlled Pump TQC200

Product Code: TQC200
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Automatic Flow-Controlled Pump

TQC Series

This TQC series most suitable to Install it below the water tower, to downward pressurization, When using the water; the pump will automatically start increase the pressure to supply water, when stop using the pump will automatically stop supply power and water.

Specification, 50Hz



Compare Products (multiple options available)

Type Power
(kW)
Phase
(Ø)
Voltage
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Maximum Pressure
(kg/cm²)
Maximum Capacity
(L/min)
TQC200 0.18 1 200~240 1.5 1" 1" 2.2 45
TQC400 0.37 1 200~240 3 1" 1" 3.0 75
TQC800 0.75 1 200~240 4.4 1" 1" 3.5 95
