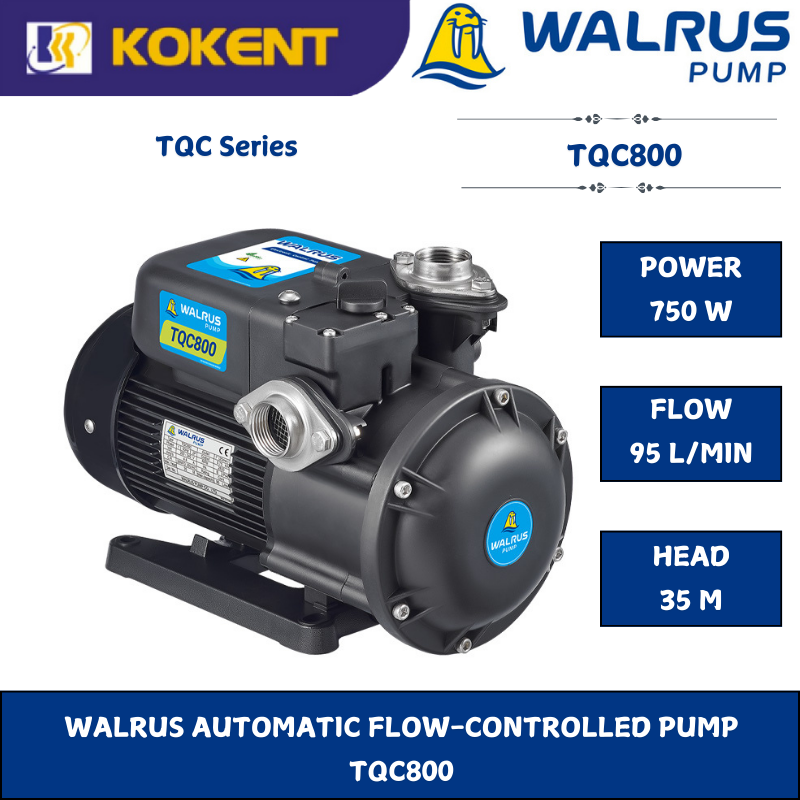

WALRUS AUTOMATIC FLOW-CONTROLLED PUMP TQC800
Automatic Flow-Controlled Pump
TQC Series
Show Model No. | TQC800
This TQC series most suitable to Install it below the water tower, to downward pressurization, When using the water; the pump will automatically start increase the pressure to supply water, when stop using the pump will automatically stop supply power and water.
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Product Feature
Compact design and quiet operation make the TQC series suitable for many applications.
The TQC is constructed from the top quality corrosion resistant materials.
The motor has built-in thermal overload to protect against high operating temperatures and over current.
Operating Condition
Ambient temperature: Max. +40°C
Liquid temperature: + 4°C ~ + 40°C
Pressure Range : Max. 6kg/cm²
Suction Pipes: Must run in positive pressure only a negative pressure unable to work the pump
Discharge Pipes: Must lower than water tower over 0.5-meter.
Specification, 50Hz
Compare Products
| Type | Power (kW) |
Phase (Ø) |
Volts (V) |
Ampere (A) |
Inlet (in.) |
Outlet (in.) |
H max (m) |
Q max (L/min) |
N.W. (kg) |
G.W. (kg) |
Maximum Pallet Amount |
| TQC200 | 0.18 | 1 | 200 - 240 | 1.5 | 1" | 1" | 22 | 45 | 6.7 | 7.2 | 45 |
| TQC400 | 0.37 | 1 | 200 - 240 | 3 | 1" | 1" | 30 | 75 | 8.2 | 8.7 | 45 |
| TQC800 | 0.75 | 1 | 200 - 240 | 4.4 | 1" | 1" | 35 | 95 | 10.4 | 10.9 | 30 |
Dimensions (mm)
| Model | Cycle (Hz) | Dimensions (mm) | ||
| A | B | C | ||
| TQC200 | 50 | 297 | 91 | 96 |
| 60 | 273 | 67 | 72 | |
| TQC400 | 50 | 306 | 99 | 104 |
| 60 | 280 | 73 | 78 | |
| TQC800 | 50/60 | 352 | 99 | 104 |
