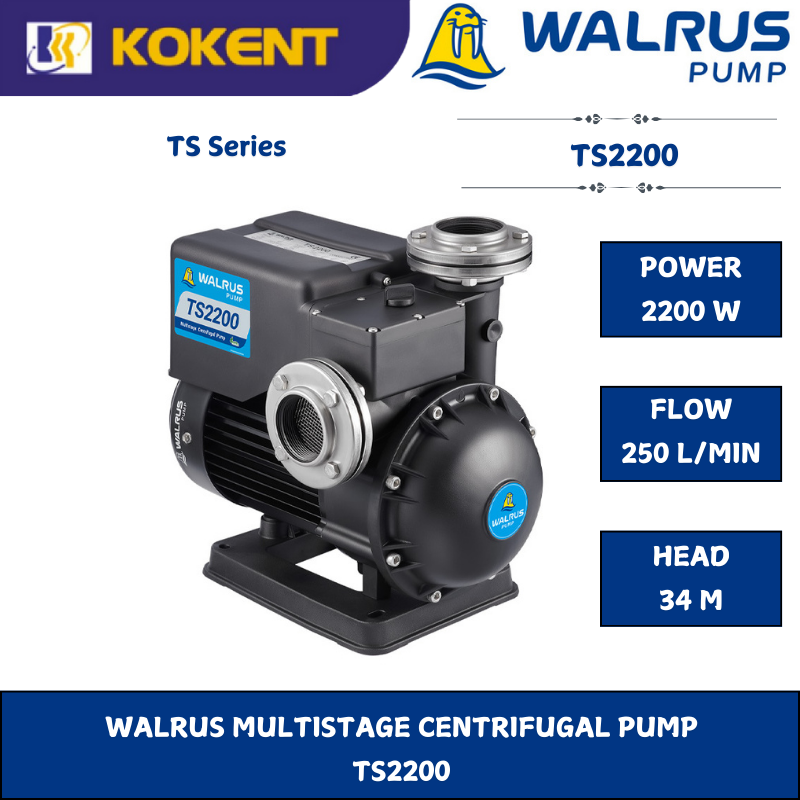

WALRUS MULTISTAGE CENTRIFUGAL PUMP TS2200
Multistage Centrifugal Pump
TS Series
Show Model No. | TS2200
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Product Feature
Mutistage design provide steady, quiet and vibration-free operation for years of trouble-free service.
Close coupled, space saving design provides easy installation.
Suitable for tansfering plain water.
The pump is installed with thermostat protection switch to protect against dry running. The pump will shut off when water temperature exceeds 130F (55C)(TS400/TQ800 only).
All parts in contact with water are made from corrosion resistant materials
The motor has a built-in thermal overload to protect against high operating temperatures and over current (Single phase motor only)
The pumps will lift water up to 7.6m. with foot valve and pump suction piping
Operating Condition
Ambient temperature：Max. +40°C
Liquid Temperature：+4°C~+40°C
Suction Head：Max. 6 m
System Pressure：Max. 8.5 kg/cm²
Specification, 50Hz
Compare Products
| Type | Power (kW) |
Phase (Ø) |
Volts (V) |
Ampere (A) |
Inlet (in.) |
Outlet (in.) |
H max (m) |
Q max (L/min) |
N.W. (kg) |
G.W. (kg) |
Maximum Pallet Amount |
| TS400 | 0.37 | 1 | 200 - 240 | 3.0 | 1" | 1" | 30 | 75 | 8.1 | 8.6 | 45 |
| TS800 | 0.75 | 1 | 200 - 240 | 4.4 | 1" | 1" | 35 | 100 | 10.3 | 10.8 | 30 |
| TS1500 | 1.5 | 133 | 200 - 240200 - 240380 - 440 | 7.25.83.3 | 2"2"2" | 2"2"2" | 32 | 230 | 21.1 | 23.5 | 121212 |
| TS2200 | 2.2 | 133 | 200 - 240200 - 240380 - 440 | 11.19.04.5 | 2"2"2" | 2"2"2" | 34 | 250 | 22.1 | 24.5 | 121212 |
Dimensions (mm)
TS1500/2200/3700
| Model | Cycle (Hz) | Dimensions (mm) | ||
| A | B | C | ||
| TS1500/2200 | 50 / 60 | 405 | 101 | 116 |
| TS3700 | 60 | 405 | 101 | 116 |
