Water Pump
Water Pump

Water Pump

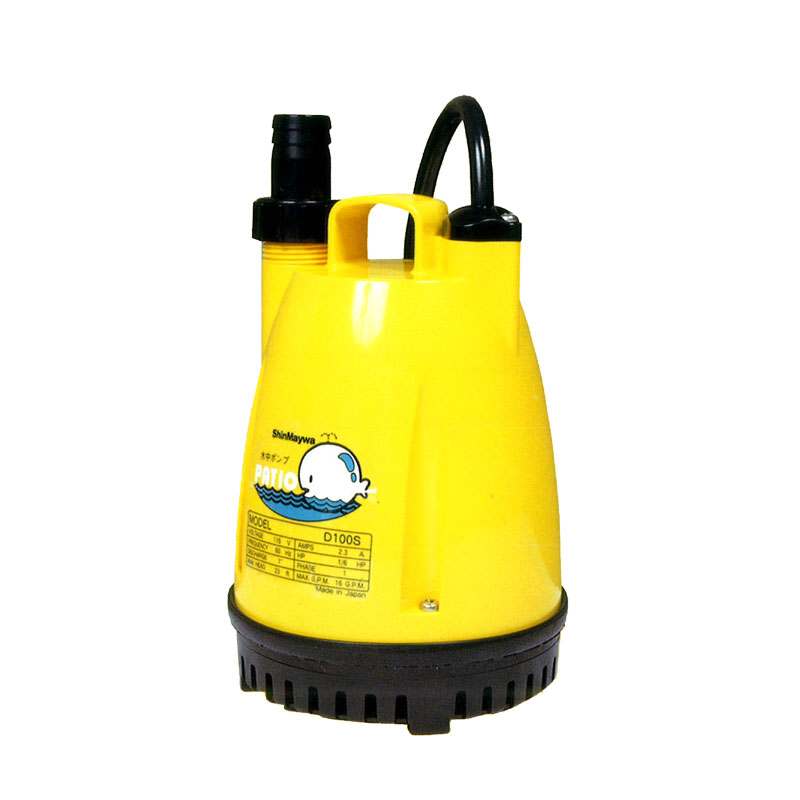

Product Code: ShinMaywa Submersible Pump
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:
  • Specifications
Model D100S D150S
Bore 25(15)mm [1″(3/4″)]
Maximum Capacity (50Hz) 70 Q/min (18.5 USG/min) 89 Q/min (23.5 USG/min)
Maximum Capacity (60Hz) 69 Q/min (18.2 USG/min) 88 Q/min (23.2 USG/min)
Maximum Total (net) head (50Hz) 7.3m(23.9ft) 9.6m(31.5ft)
Maximum Total (net) head (60Hz) 8.0m(26.2ft) 10.6m(34.8ft)
Rated Output 100W 150W
Rated Voltage 100V
Rated Current 2.3A 3.4A
Motor overhead protection Micro-thermal protector (MTP)
Pump weight 2.7kg (6 lbs) 3.0kg (6.6 lbs)
