West Lake Auto-Feed Bench Drill 25mm 1500W 2160rpm 188kg JZB-25
West Lake Auto-Feed Bench Drill 25mm 1500W 2160rpm 188kg JZB-25

West Lake Auto-Feed Bench Drill 25mm 1500W 2160rpm 188kg JZB-25

Product Code: JZB-25
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: JZB-25

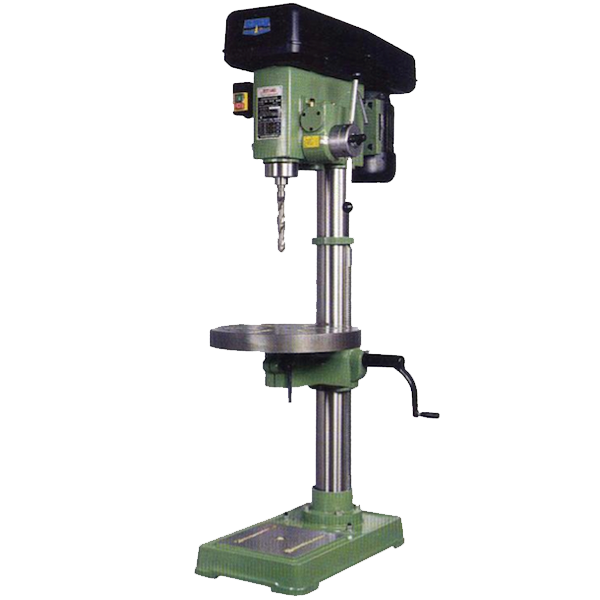

It is a Auto-Feed Drilling Machine.

Features

  • Spindle feeding can be changed automatically and manually.
  • Belt driven, low noise
  • Will return to start place automatically

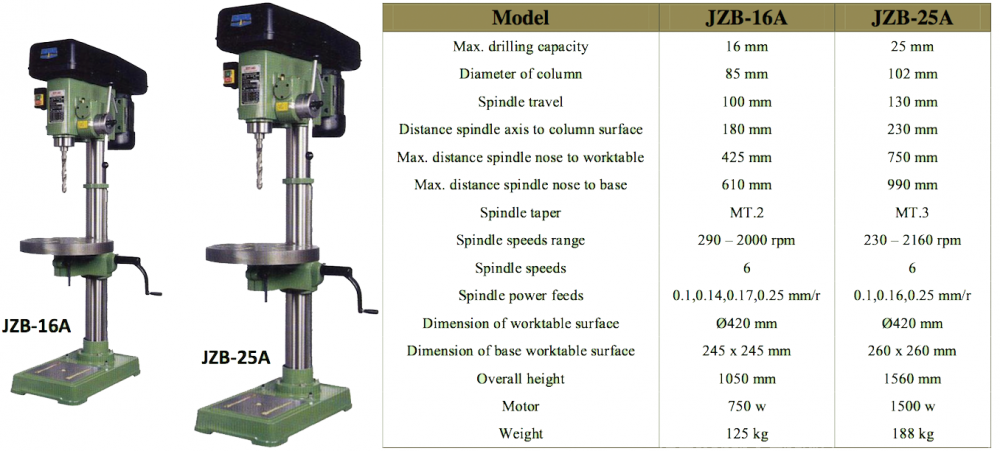

Specifications

Max. Drilling Capacity 25mm
Diameter of column 102mm
Spindle travel 130mm
Distance spindle axis to column surface 230mm
Max. distance spindle nose to worktable     750mm
Max. distance spindle nose to base 990mm
Spindle taper MT.3
Spindle speeds range 230 - 2160rpm
Spindle speeds 6
Spindle power feeds 0.1, 0.16, 0.25mm/rotation
Dimension of worktable surface Ø420mm
Dimension of base worktable surface 260mm x 260mm
Overall height 1560mm
Motor 1500W
Weight 188kg
